Description

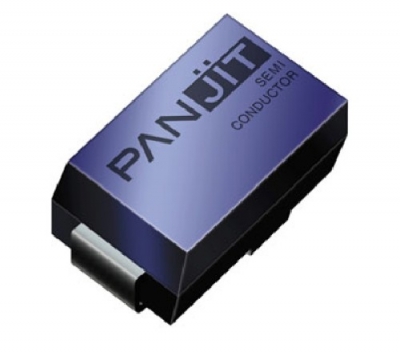

Panjit GS1MW Surface Mount General Purpose Rectifier DIODE VOLTAGE 50 to 1000 Volts CURRENT 1.0 Amperes DO-214AC.
Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AC
RoHS Compliant Yes
Status Discontinued
Diode Type RECTIFIER DIODE
Configuration SINGLE
Forward Voltage-Max (VF) 1.1 V
Moisture Sensitivity Level NOT SPECIFIED
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Operating Temperature-Max 150 Cel
Output Current-Max 1 A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 1000 V
Sub Category Rectifier Diodes
Surface Mount YES
FEATURES
• For surface mounted applications in order to optimize board space
• Easy pick and place
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
• Low Forward Drop
• High temperature soldering : 260°C /10 seconds at terminals
• Glass Passivated Junction
• Lead free in comply with EU RoHS 2011/65/EU directives
• Green molding compound as per IEC61249 Std. . (Halogen Free)
