Description

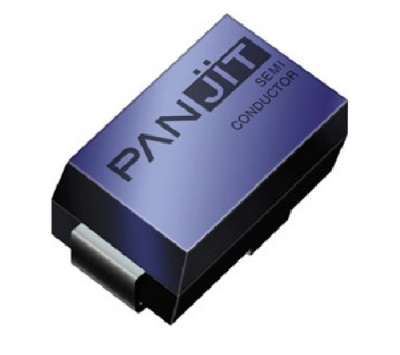

Panjit SS1060VHEWS Surface Mount Schottky Barrier Rectifier 1A, 60V, Silicon, Signal Diode SOD-323HE
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
EU RoHS Compliant Yes
Status Active
Diode Type RECTIFIER DIODE
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code R-PDFP-F2
Moisture Sensitivity Level NOT SPECIFIED
Number of Elements 1
Number of Terminals 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max 150 Cel
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLATPACK
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 60 V
Surface Mount YES
Technology SCHOTTKY
Terminal Form FLAT
Terminal Position DUAL
FEATURES
• SOD-323HE low profile package
• Low forward voltage drop, low reverse current
• High Efficiency
• Lead free in comply with EU RoHS 2011/65/EU directives.
• Green molding compound as per IEC61249 Std. . (Halogen Free)
Manufacturer:Panjit
Datasheet:SS1060VHEWS.pdf
