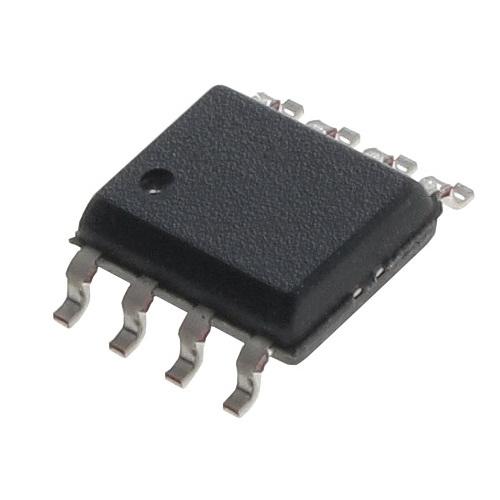

PERICOM PI5A319AW Precision Wide Band Analog Switch SMT / SMD SOIC-8
The PI5A317A/381A/319A are analog switches designed for single- supply operation. These high-precision device is ideal for low- distortion audio, video, signal switching and routing. The PI5A317A is a single-pole single-throw (SPST), normally closed (NC) switch. The PI5A318A has the same pinout but is a single-pole, single-throw (SPST, normally open (NO) function. The PI5A319A is a single-pole, double-throw (SPDT) switch.
Specifications
EU RoHS Not Compliant
Type Analog Switch
Configuration Single SPDT
Number of Channels per Chip 1
Switch Architecture SPDT
Number of Inputs per Chip 1
Number of Outputs per Chip 2
Polarity Non-Inverting
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Maximum On Resistance (Ohm) 28@3.6V
Maximum Turn-On Time (ns) 40@3.3V@-40C to 85C
Maximum Turn-Off Time (ns) 20@3.3V@-40C to 85C
Maximum Power Dissipation (mW) 500
Minimum Single Supply Voltage (V) 2
Typical Single Supply Voltage (V) 3|5
Maximum Single Supply Voltage (V) 6
Power Supply Type Single
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 5(Max)
Package Width (mm) 3.99(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC N
Pin Count 8
Lead Shape Gull-wing
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1
Number of Circuits 1
On-State Resistance (Max) 18 Ohm
Channel-to-Channel Matching (?Ron) 800 mOhm
Voltage – Supply, Single (V+) 2 V ~ 6 V
Voltage – Supply, Dual (V±) –
Switch Time (Ton, Toff) (Max) 20ns, 10ns
-3db Bandwidth 200MHz
Charge Injection 3pC
Channel Capacitance (CS(off), CD(off)) 13pF, 45pF
Current – Leakage (IS(off)) (Max) 80nA
Crosstalk –
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 8-SOIC (0.154″, 3.90mm Width)
Supplier Device Package 8-SOIC
