Description

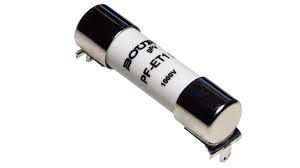

PF-HT1-30 Bourns POWrFuseÖ PF-H Solar (Photovoltaic) Cartridge, Ceramic Fuse 30A600 VDC cULus, TUV, UL Through Hole
Product Category: Industrial & Electrical Fuses
Series: PF-H
Product: Specialty Fuses
Current Rating: 30 A
Voltage Rating AC: 600 VAC
Fuse Type: Medium / Normal Blow
Voltage Rating DC: 600 VDC
Interrupt Rating: 10 kA at 600 VDC, 50 kA at 600 VDC, 150 kA at 600 VAC
Body Style: Round Body Fuses
Mounting Style: Through Hole
Termination Style: Solder
Packaging: Tray
Resistance: 2.87 mOhms
Brand: Bourns
Diameter: 10.3 mm
Length: 38 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Subcategory: Fuses
Tradename: POWrFuse
Type: PCB Mount Fuse
Breaking Capacity at Rated Voltage: 150kA AC, 50kA DC
Package (Case): Radial Bend Cylinder
Size (Dimension): 0.406″ Dia x 1.496″ L (10.30mm x 38.00mm)
Manufacturer Part Number: PF-HT1-30
Manufacturer: Bourns Inc.
Datasheet: Datasheet
