Description

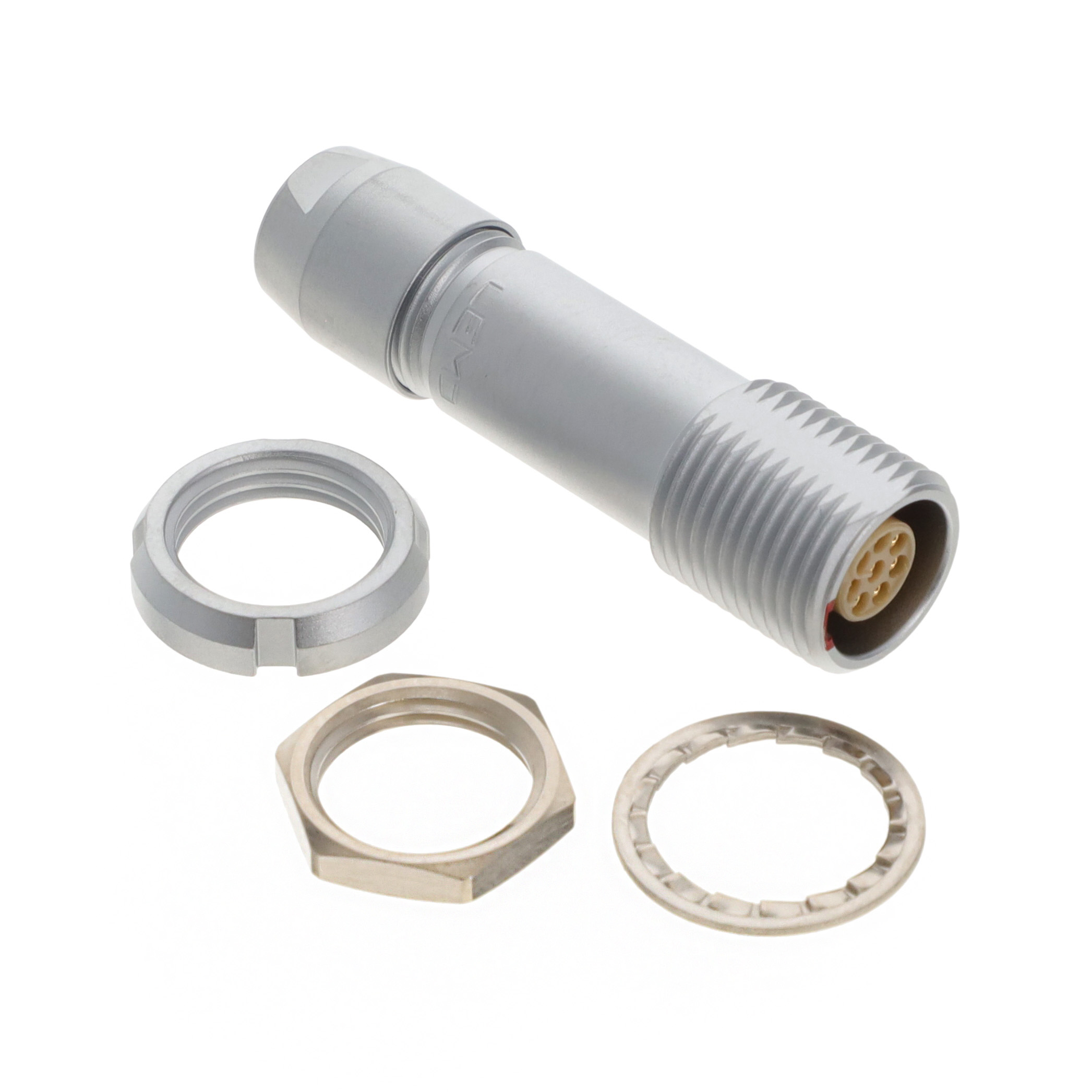

PFG.1B.308.CLLD62 Lemo Push-Pull Metal Connector Receptacle, Female Sockets 8 Position 5A 0.205″ ~ 0.244″ (5.20mm ~ 6.20mm) IP50 – Dust Protected Free Hanging (In-Line); Panel Mount Shielded Front and Rear Side Nut UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 8
Shell Size – Insert: 8
Orientation: G
Current Rating: 5A (Amps)
Termination: Solder Cup
Mounting Feature: Front and Rear Side Nut
Mounting Type: Free Hanging (In-Line); Panel Mount
Fastening Type: Push-Pull
Manufacturer Part Number: PFG.1B.308.CLLD62
Manufacturer: Lemo
Datasheet: Datasheet
