Description

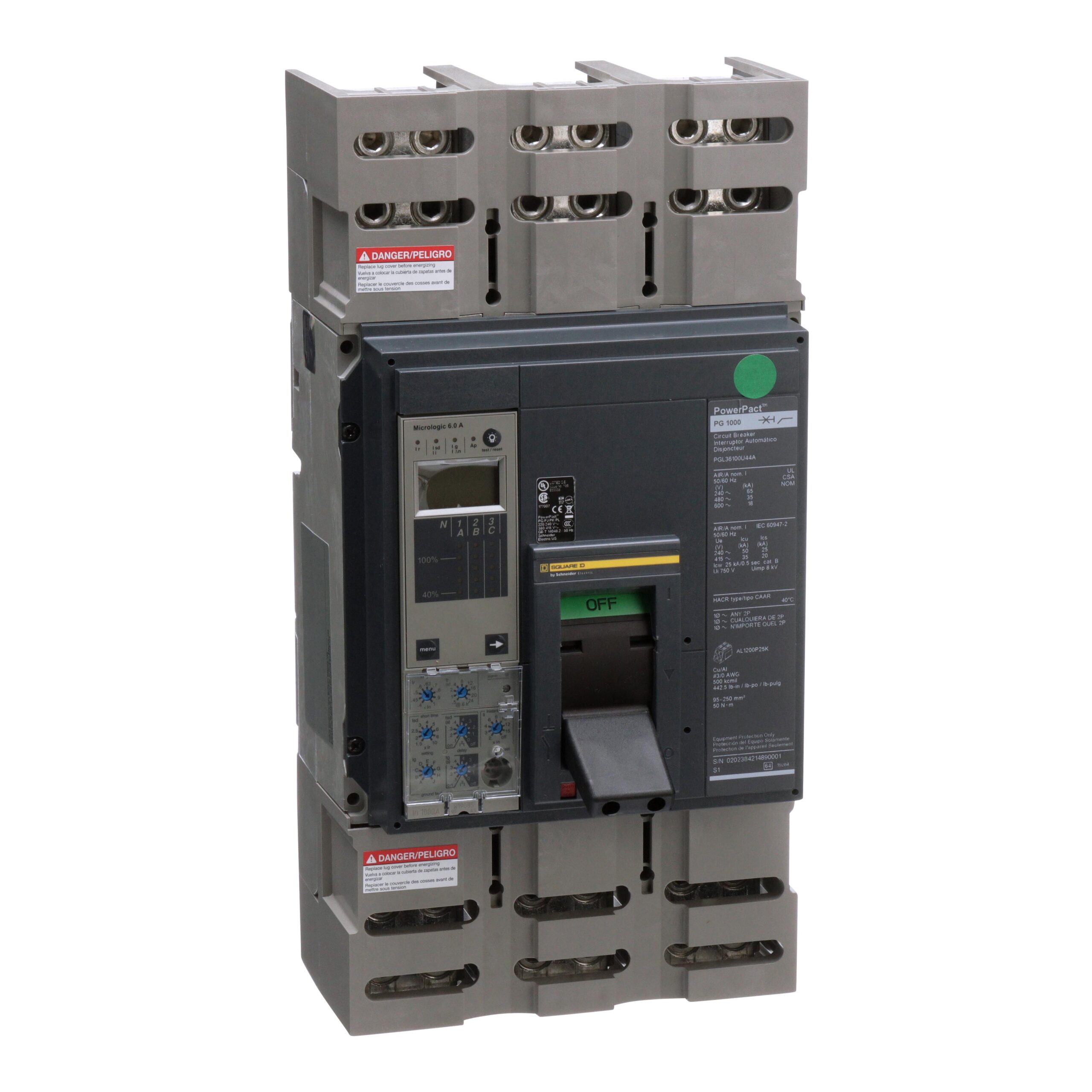

Schneider Electric Square D PGL36100U44A P Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 1000 Amp up to 600 VAC, Three Pole, G Interrupt Rating.
Specifications:
Manufacturer: Schneider Electric, Square D
Cat. No: PGL36100U44A
Alternate Part No: PGL36100U44A
Product Type: Circuit Breaker
Trip Unit Type: Electronic, ammeter, Micrologic 6.0 A, LSIG
Type: P-Frame
Number Of Poles: 3 Poles
Phase: 3
Voltage Rating: 600 V
Amperage Rating: 1000 A
Interrupting Rating: 35kA@480V
Wire Size: AWG 3/0, 500 kcmil aluminium/copper)4
Mounting: Unit
Size: 16.16 Inch H x 8.27 Inch W x 8.05 Inch D
Approval: IEC, CSA, UL
Brand: Square D[R]
Authentic Schneider Electric, Square D Product
Breaker Type: Solid State
Mounting Type: Panel Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 1kA (Amps)
Package: Box
Features
Available in 2-3-4 pole design.
Available from 100-1200 A, up to 600 Vac.
nterrupting ratings (AIR) include G-35 kA, J-65 kA, K-50 kA and L-100 kA at 480Vac.
Available in standard (80%) or 100% rating.
Available with Micrologic® trip units with power metering and monitoring capabilities.
Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPacT M- and P-frame circuit breakers.
Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
Optional Ground Fault protection with nine adjustable ground fault pickup levels and five tripping delays using Micrologic 6.0 trip unit.
PG, PJ, PL have zone-selective interlocking capability (ZSI). Micrologic trip unit 5.0 has short-time ZSI and 6.0 has both short-time and ground-fault ZSI.
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications.
• IEC Style Rotary Operating Handles
NEMA 9421 Door Mounted Rotary Operating Mechanism.
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
Available in Unit-mount, I-line, and drawout (factory-installed option only) constructions.
2-3 pole automatic molded case switches available at up to1200 A.
UL 489 Listed, CSA, NMX, IEC certified for worldwide applications.
