Description
PH1-03-TA Adam Tech Connector Pin Conn Unshrouded Header HDR 3 Position 2.54mm Solder ST Top Entry Thru-Hole Bag RoHS

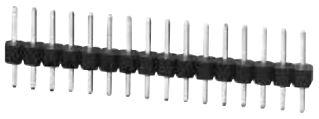

The PH Series from Adam Tech is a family of .100″ centerline Pin Headers. This series offers a full range of headers in a variety of configurations. Adam Tech offers a choice of single, dual, and three rows, either Straight or Right Angle in thru hole or Surface mount mountings.The posts have a close tolerance of 0.025″ sq which are smoothly finished and taper tipped to eliminate insertion damage to the PCB or mating connector. Adam Tech Pin Headers can be easily cut down into exact sizes as required. PH1-03-UA is a 3 position Single Row Straight form, .100″ Header. This device is gold flash plated, has a Mating length of .235″ , and has a Solder tail length of .120″.
Technical Attributes
Attributes Table
No of Positions:3
Pitch:2.54 mm
Style/Orientation:Straight Header/Plug
Operating Temp Range:-40C to +105C
Voltage Rating:250V
Current Rating:3A
Contact Plating:Gold
Material:Polybutylene Terephthalate
No of Rows:1
Type:Board to Board
Color:Black
Insulation Resistance:5000Mohm
Mounting Method: Through Hole
Manufacturer:Electronic Components
Datasheet:PH1-XX-UA.pdf
