Description

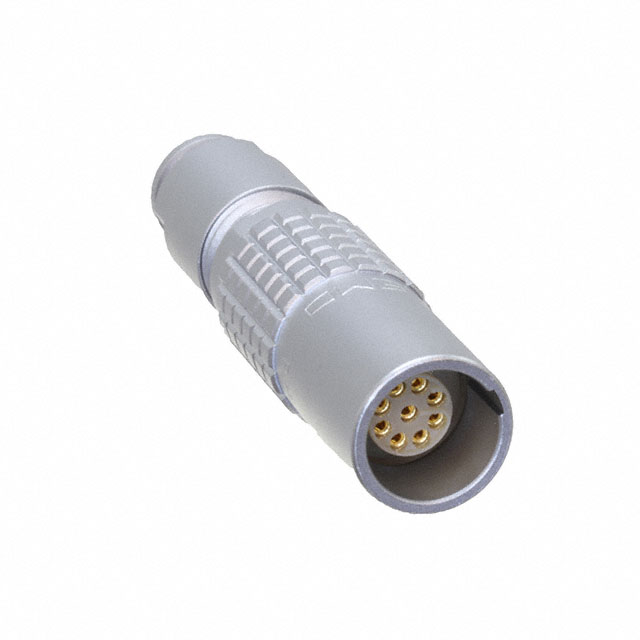

PHG.0B.309.CLLD52Z Lemo Push-Pull Metal Connector Receptacle, Female Sockets 9 Position 2A 0.165″ ~ 0.205″ (4.20mm ~ 5.20mm) IP50 – Dust Protected Free Hanging (In-Line) Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 9
Shell Size – Insert: 9
Orientation: G
Current Rating: 2A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull
Manufacturer Part Number: PHG.0B.309.CLLD52Z
Manufacturer: Lemo
Datasheet: Datasheet
