Description

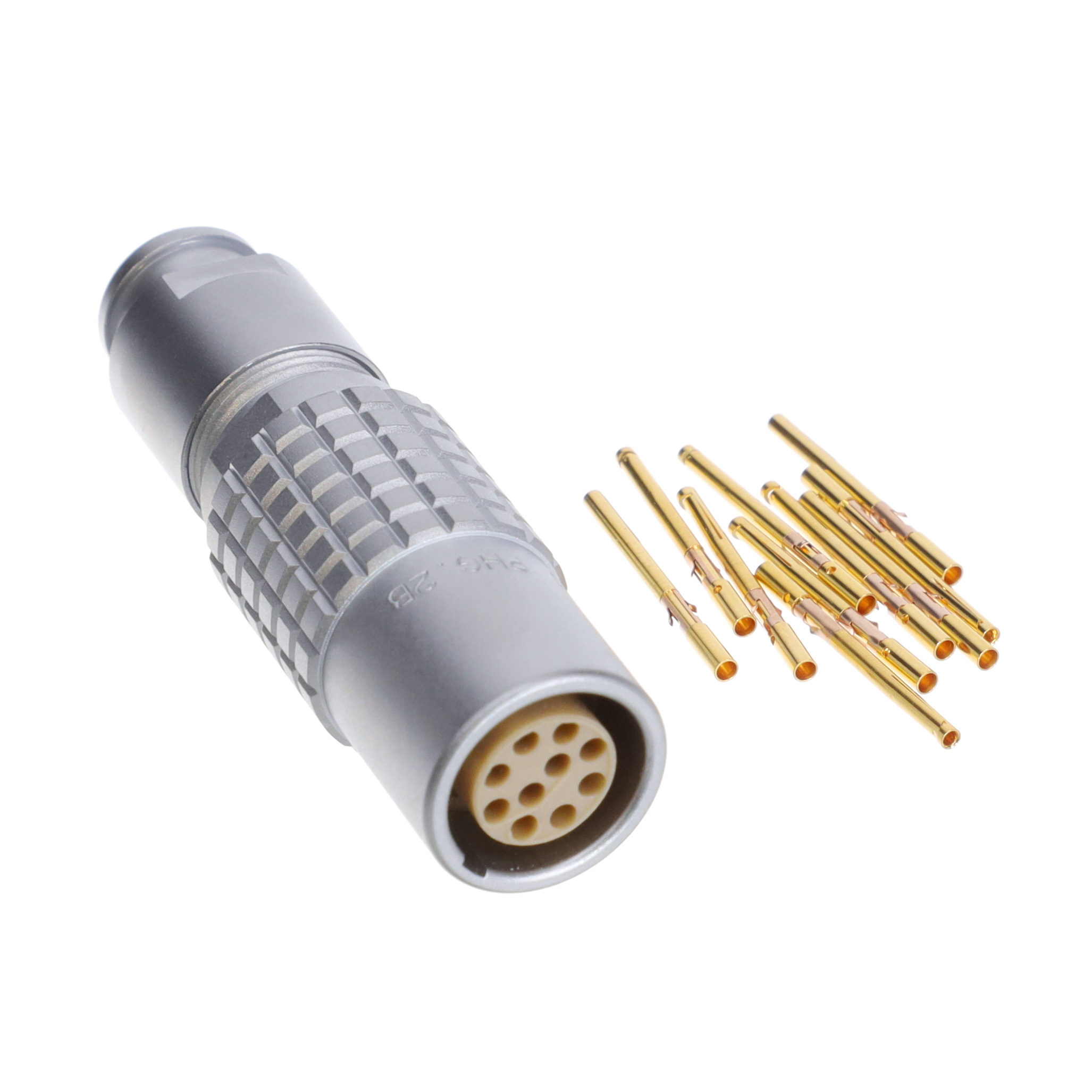

PHG.2B.310.CYMD92Z Lemo Push-Pull Metal Connector Receptacle, Female Sockets 10 Position 8A 0.323″ ~ 0.362″ (8.20mm ~ 9.20mm) IP50 – Dust Protected Free Hanging (In-Line) Shielded UL94 V-0 Backshell Crimp
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 10
Shell Size – Insert: 10
Orientation: G
Current Rating: 8A (Amps)
Termination: Crimp
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull
Manufacturer Part Number: PHG.2B.310.CYMD92Z
Manufacturer: Lemo
Datasheet: Datasheet
