Description

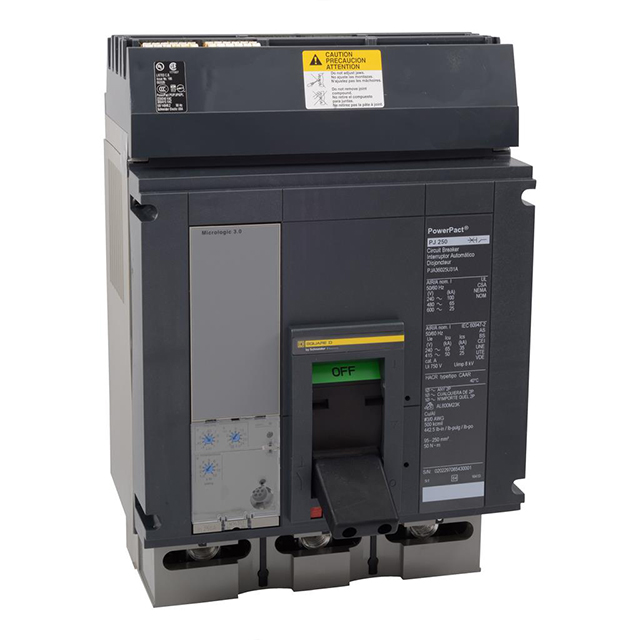

PJA36025U31A Schneider Electric Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 3.0, 80%, ABC DIN Rail Toggle 3-Poles CSA, UL
Electronic, Standard, Micrologic 3.0, LI Type; I-Line Panelboard and Switchboard Used on; UL, CSA Approval; Power Distribution Application; 600 Volt AC 50/60 Hertz Voltage Rating; 25 Kiloamp at 600 Volt AC Interrupting Rating; 250 Amp Current Rating
SPECS
Amps 250 Amp
Breaker Interrupt Rating 1 100KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 25KA @ 600VAC
Breaker Line Side Term Method I-Line
Breaker Load Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Std, LI
Frame P-Frame
Height 12.7
Length 20.5
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 25KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 250Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 600V
Width 12
Breaker Type: Solid State
Mounting Type: DIN Rail
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 250A (Amps)
Package: Box
Category: 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Full Technical Description: Electronic, Standard, Micrologic 3.0, LI Type; I-Line Panelboard and Switchboard Used on; UL, CSA Approval; Power Distribution Application; 600 Volt AC 50/60 Hertz Voltage Rating; 25 Kiloamp at 600 Volt AC Interrupting Rating; 250 Amp Current Rating; 3 Pole(S); POWERPACT[TM] Brand; Rohs/Reach Compliant; Overall Dimension 8.27 Inch Width X 8.05 Inch Depth X 12.86 Inch Height; Frame Type P; Terminal Type I-Line Connection Line Lug Load; Control Type Toggle; Terminal Wire Size (3) 3/0 AWG to 500 kcmil (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating 28 to 158 Deg F; Applicable Standard NOM; PJ Model
Manufacturer: Square D Co.
