Description

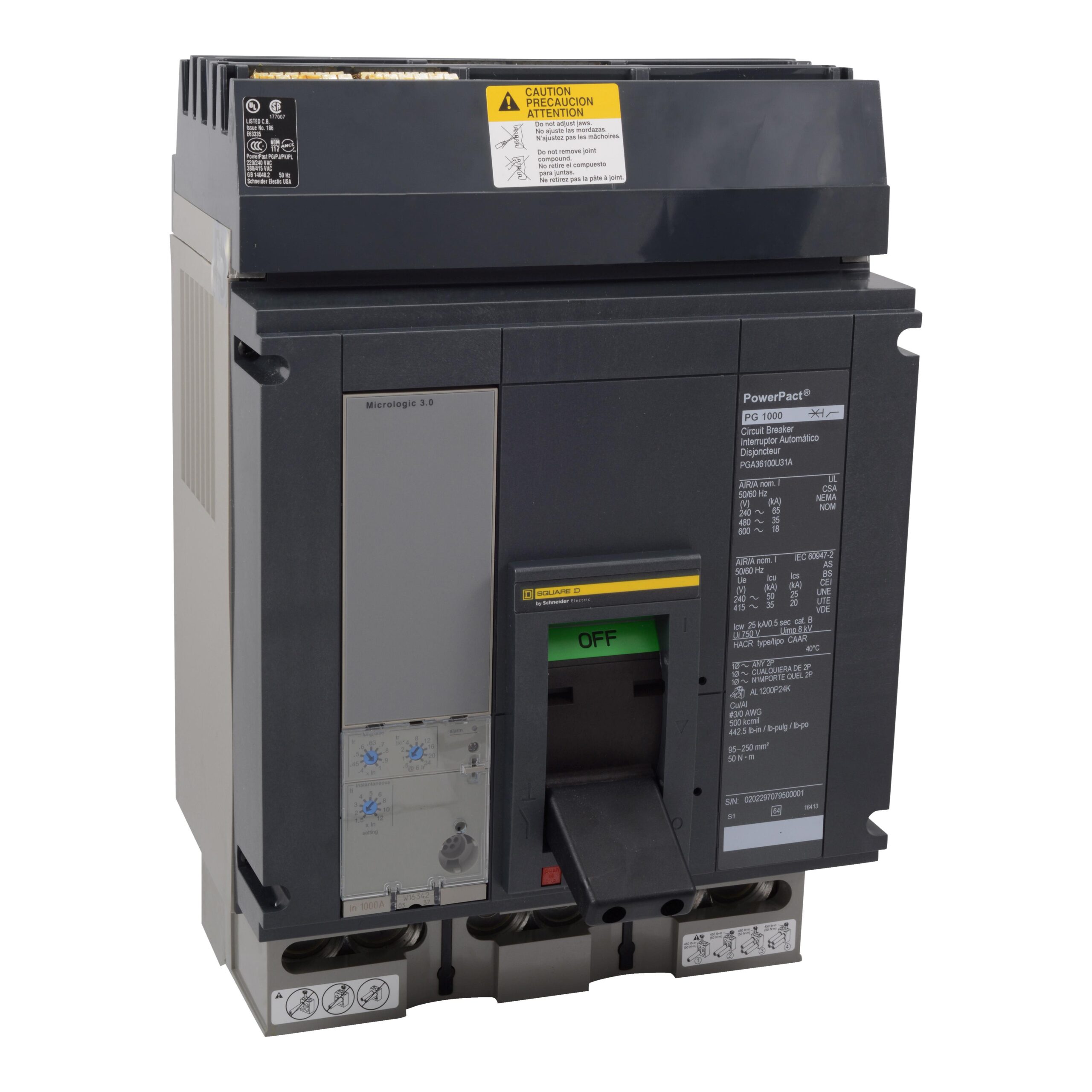

PJA36120U31A Schneider Electric Molded Solid State Circuit Breaker 600V 1.2kA DIN Rail Toggle 3-Poles CSA, UL
Amps 1200 Amp
Breaker Interrupt Rating 1 100KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 25KA @ 600VAC
Breaker Line Side Term Method I-Line
Breaker Load Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Std, LI
Frame P-Frame
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 25KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 1200Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
Connection: AWG 3/0…500 KCMIL ALUMINIUM/COPPER)4,I-LINE CONNECTION LINE-LUGS LOAD
Frame: P-FRAME
Height: 16.16 IN
Interrupt Rating: 100 KA 240 V AC-65 KA 480 V AC-25 KA 600 V AC,600 V AC
Length: 8.05 IN
Number Of Poles: 3
Special Features: I-LINE
Standard: UL LISTED-CSA-IEC
CATALOG DESCRIPTION: CIRCUIT BREAKER, POWERPACT P, 1200A, 3 POLE, 600VAC, 25KA, I-LINE, MICROLOGIC 3.0, 80%, ABC
Category: 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UPC 785902000000
Volts 600V
Breaker Type: Solid State
Mounting Type: DIN Rail
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 1.2kA (Amps)
Package: Box
