Description

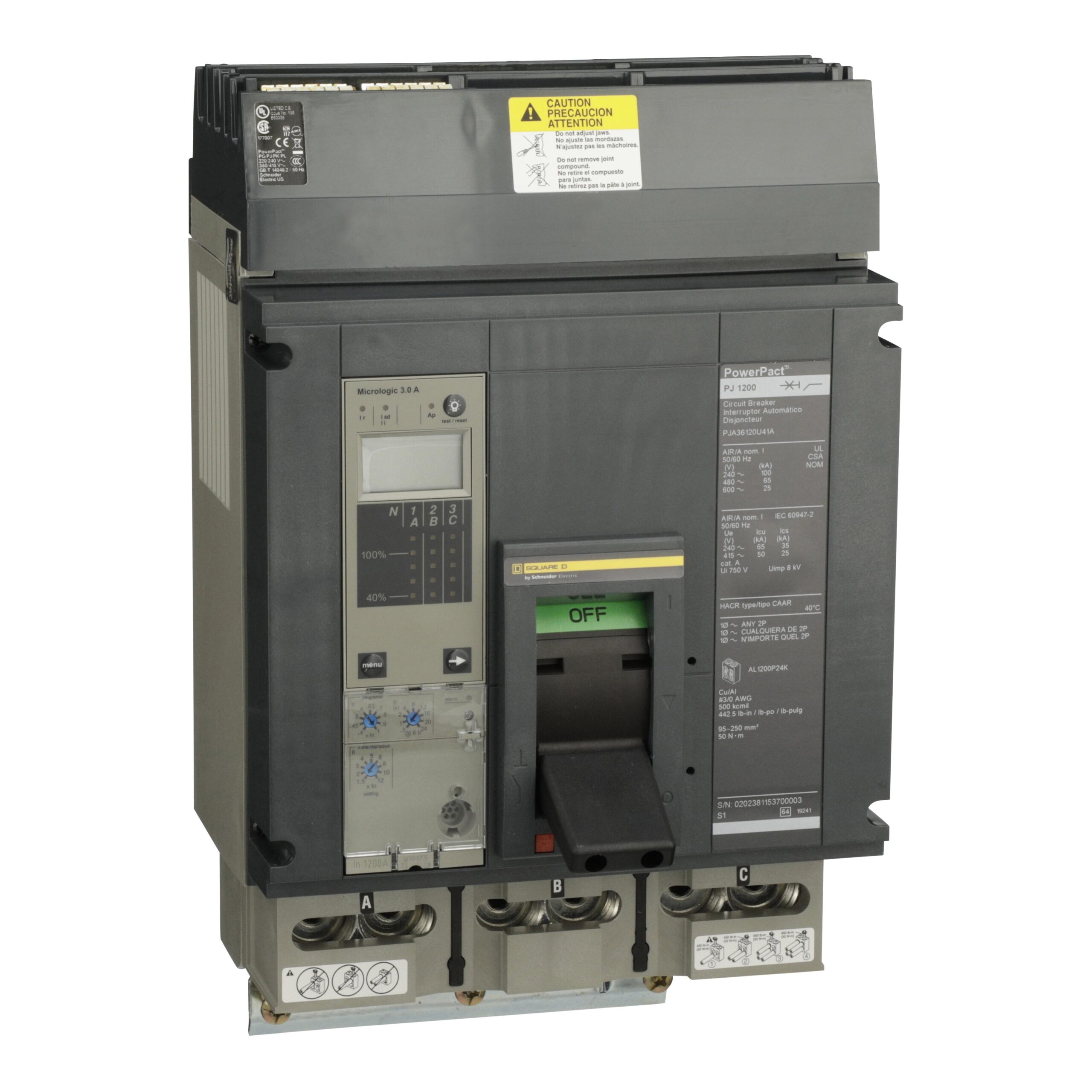

PJA36120U41A Schneider Electric Square D I-Line Style Plug-In 1200 Amperage Circuit Breaker Specifications Part Number / Catalog PJA36120U41A Manufacturer Square D Frame Type PJA Voltage 600 Poles 3 Amps 1200 Mounting I-Line UPS 785901879336
Part Number:
PJA36120U41A
Manufacturer:
Schneider Electric / Square D
Family:
Powerpact
Pole:
3
Amp
1200
Volt:
600
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
I-Line Style Plug-In
Type:
PJA
Functions:
LI – Long-Time and Instantaneous
Protection:
Solid State
AIC Ratings:
65kA@480V
Dimensions
Dimensions (HxWxD):
16.16″ x 8.27″ x 8.05″
Weight:
32 lbs
Standards
CSA Approved logo
Additional Details
Trip Unit Technology:
Electronic, ammeter, MicroLogic 3.0 A, LI
Line Rated Current:
1200 Amp
Mounting Mode:
I-Line bracket
Breaking Capacity Code
J
Electrical Connection:
I-Line connection line / Lugs load
Continuous Current Rating
80%
Breaker Type: Solid State
Mounting Type: DIN Rail
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 1.2kA (Amps)
Package: Box
