Description

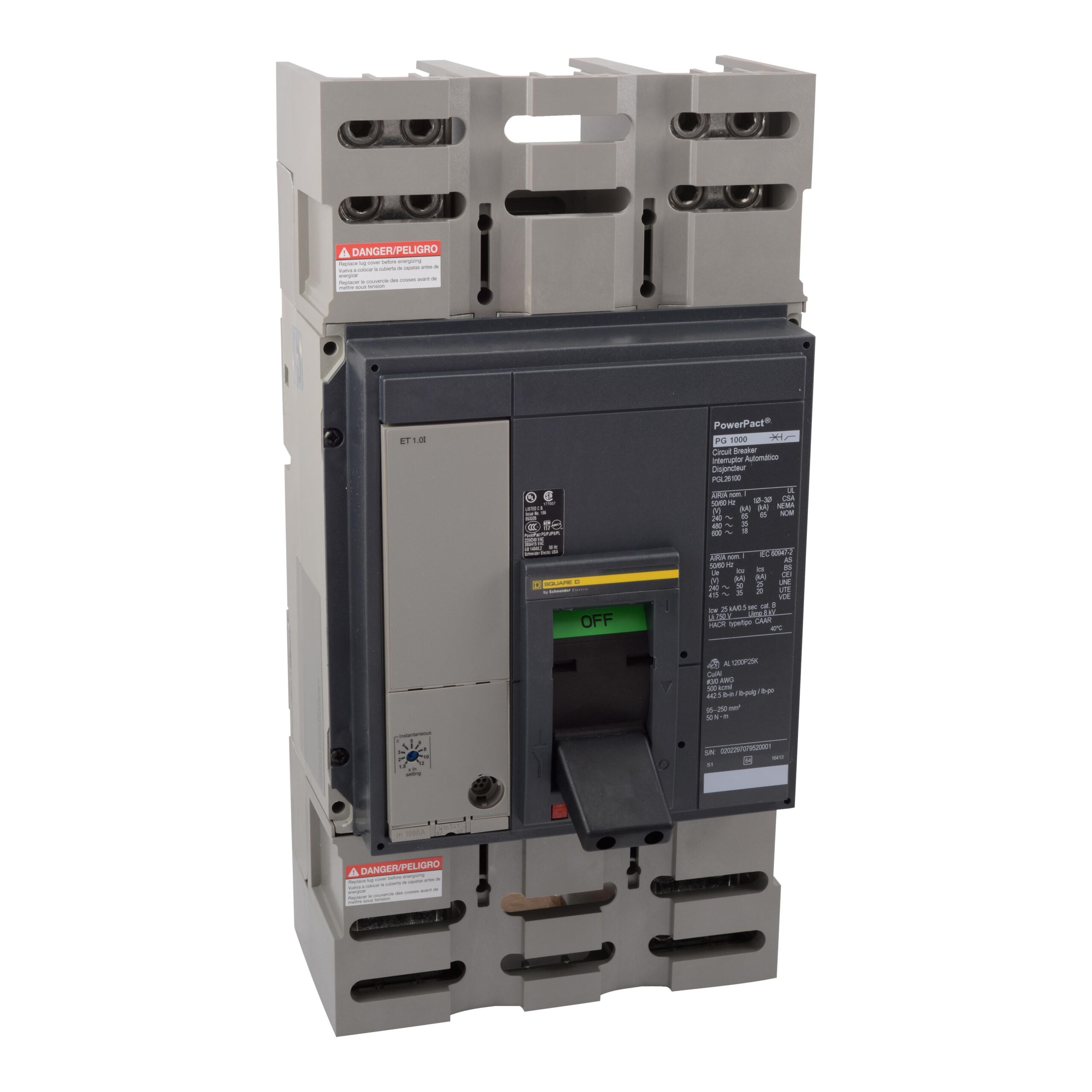

PJL36120CU33A Schneider Circuit Breaker, Powerpact P, 1200A, 3 -Pole, 600Vac, 25Ka, Lugs, Micrologic 5.0, 100%, Chassis Mount Toggle 3-Poles CSA, UL
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn’t have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
UPC 78590132108
UNSPSC 39121601
Standard UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Application Distribution
Mounting Type Unit
AWG Range AWG 3/0…500 kcmil
Current Rating 1200-1200A
Frequency Rating 50/60 Hz
IP Rating IP40
Rated Voltage 600V ac
Torque 50-50 N.m
Length 30 mm
Height 16.16 in.
Depth 8.05 in.
Width 8.27 in.
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 1.2kA (Amps)
Package: Box
