Description

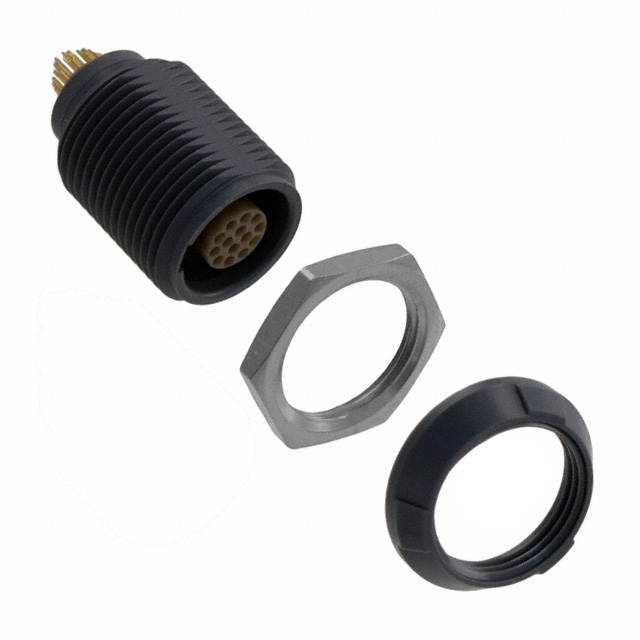

PKG.M1.4SL.LG Lemo Push-Pull, Detent Lock Plastic Connector Receptacle, Female Sockets 14 Position 2A IP50 – Dust Protected Panel Mount Unshielded Front and Rear Side Nut – Solder Cup
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polyetherimide (PEI)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 14
Shell Size – Insert: 14
Orientation: G
Current Rating: 2A (Amps)
Termination: Solder Cup
Mounting Feature: Front and Rear Side Nut
Mounting Type: Panel Mount
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PKG.M1.4SL.LG
Manufacturer: Lemo
Datasheet: Datasheet
