Description

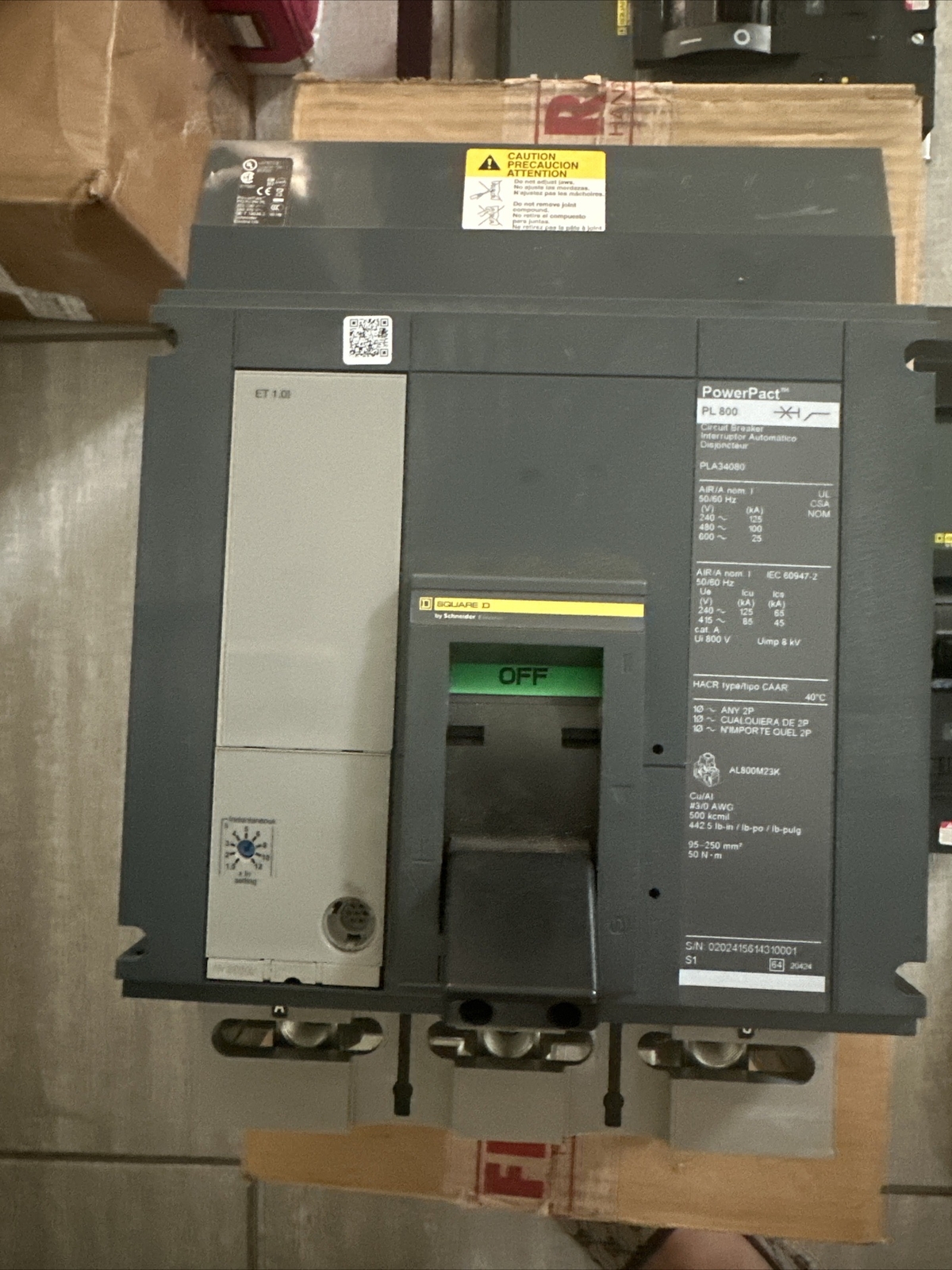

PLA34100U31A Schneider Electric P-Frame Molded Solid State Circuit Breaker 480V 1kA I-Line, DIN Rail Toggle 3-Poles CSA, UL
P-Frame breakers have protection from 250 to 1200 A up to 600 Vac. Have 2,3, & 4 Pole options. Same dimensions, common mounting, bussing, cabling and door cut out as powerpact M-Frame breakers
Amps 1000 Amp
Breaker Interrupt Rating 1 125KA @ 240VAC
Breaker Interrupt Rating 2 100KA @ 480VAC
Breaker Line Side Term Method I-Line
Breaker Load Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Std, LI
Frame P-Frame
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 100KA @ 480VAC
Number of Poles 3 Pole
Product Description 480Volt, 1000Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 480V
Breaker Type: Solid State
Mounting Type: DIN Rail
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 480V AC
Current Rating: 1kA (Amps)
Package: Box
