Description

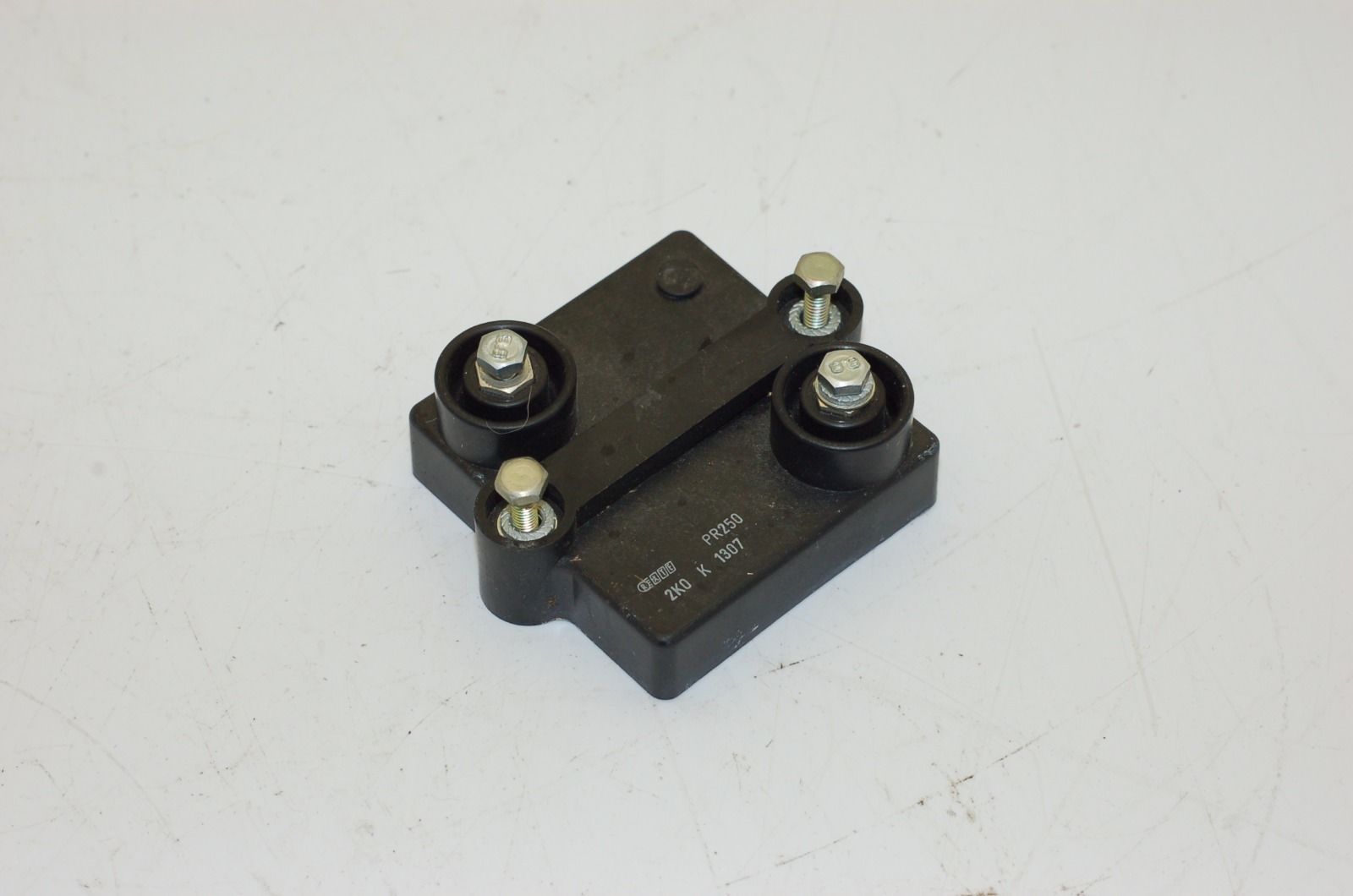

PR250PD-2K7 5% ATE Electronics Film Power Resistor 2.7KOhm 5% 250W Axial RoHS
ATE Thick Film Resistors , Excellent Power/Volume ratio. Easy mounting and wiring with significant cost advantages. Non-inductive performance for high frequency applications up to 500W. Suited for ULV94-VO application. 250W/100C Up=5kVac Ui=7kVac 0.15C/W , TK=+100ppm <40nH <40pF
Basic information:
Type of casing:THT
Specification:TK 100ppm
Tolerance of nominal value10 %
RoHSYes
Manufacturer:ATE Electronics
Datasheet:pr250-ate.pdf
