Description
Ultra Low Power HDMI/DVI Repeater and Level Shifter for AC Coupled Source Device
The PS8203 and PS8204 are repeater devices for HDMI or DVI digital video interface applications. The PS8203/8204 devices consume very low power and are offered in small packages making them idea for battery powered applications.
The PS8203/8204 can accept either DC or AC coupled TMDS clock and data inputs, allowing the devices to serve as a voltage level shifter for source devices that utilize a low-voltage, AC coupled HDMI or DVI transmitter. The PS8203/8204 provide DC coupled HDMI/DVI output signaling that is compatible with the HDMI/DVI video standards.
General Features:
Compliant to the HDMI 1.4b specification with up to 3.0 Gbit/sec per channel
Supports 4k x 2k formats and 3D formats over HDMI
AC input coupling capable for level shifter and redriver applications
DC input coupling capable for repeater / redriver applications
Programmable input equalizer to compensate for PCB, cable and connector losses
Programmable TMDS output pre-emphasis
HPD and DDC is HDMI compatible at the Sink side Adjustable output voltage level for HPD and DDC at the Source side
Automatic power down management with less than 0.1mW standby power
Automatic squelch for fail-safe output and power management
Ultra-low power consumption
0C to 85C Operating Temperature Range
Applications:
Notebook and PC
Tablet
SmartPhone
Docking Station

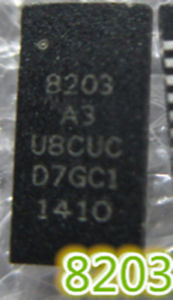

Manufacturer Part Number: PS8203-A3
Manufacturer: Electronic Components
