Description

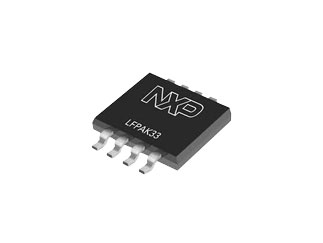

PSMN040-100MSEX Nexperia / NXP Transistor PSMN040 Series 100 V 30 A 36.6 mOhm N-Ch Standard Level MOSFET – LFPAK33
Specifications
Manufacturer: Nexperia
Product Category: MOSFET
RoHS
Technology: Si
Mounting Style: SMD/SMT
Package / Case: LFPAK33-4
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 100 V
Id – Continuous Drain Current: 30 A
Rds On – Drain-Source Resistance: 36.6 mOhms
Vgs th – Gate-Source Threshold Voltage: 2.3 V
Vgs – Gate-Source Voltage: 10 V
Qg – Gate Charge: 30 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single Triple Source
Pd – Power Dissipation: 91 W
Channel Mode: Enhancement
Packaging: Cut Tape
Packaging: Reel
Transistor Type: 1 N-Channel MOSFET
Brand: Nexperia
Fall Time: 13 ns
Product Type: MOSFET
Rise Time: 14.1 ns
Factory Pack Quantity: 1500
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 18.7 ns
Typical Turn-On Delay Time: 8.3 ns
Unit Weight: 0.002042 oz
Manufacturer Part Number: PSMN040-100MSEX
Manufacturer: NXP
