Description

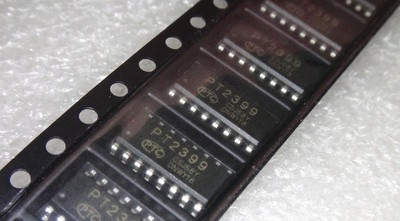

Princeton Technology Corp (PTC) PT2399S IC Processor Echo Encapsulation SOP-16
The PT2399 is a single chip echo processor IC utilizing ^CMOS technology. Which accept analog audio input ^signal, a high sample rate ADC transfer the analog ^signal into a bit stream then storage to internal 44Kbit ^RAM, after processing the bit stream will de-modulate ^by DAC and lowpass filter. Overall delay time is ^determined by internal VCO clock frequency, and user ^can easy to change the VCO frequency by changing ^the external resistance. The PT2399 performs low ^distortion (THDEATURES
^
^ CMOS technology
^
^ Least external components
^
^ Auto reset Function prevent POP noise
^
^ Low noise, SNR better than 90dB (typical)
^
^ Low distortion, THD= 0.5%(typical)
^
^ User adjustable VCO clock frequency
^
^ APPLICATIONS
^
^ KARAOKE Mixer
^
^ CD/DVD Player/Recorder
^
^ Multimedia TV
^
^ Car Entertainment System
^
^ Music Instrument effecter
^
^ Electronics Toy
Manufacturer:Electronic Components
Datasheet:PT2399.pdf
