Description

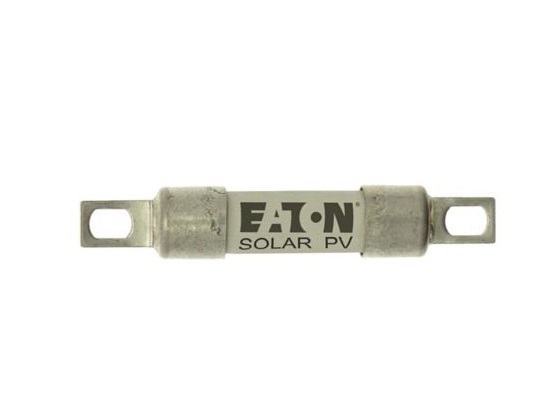

PV-2A10-T Bussmann PV Solar High Speed Fuse, Semi-Conductor, Series: PV Series, 2 A, 1000 V, 50 kA Interrupt, Class: gPV, Bolted Ferrule End Terminal, 11 mm Dia x 59.8 mm L Body CCC, CSA, UL Bolt Mount
Breaking Capacity at Rated Voltage: 50kA
Package (Case): Cylindrical, Blade Terminal (Bolt)
Size (Dimension): 0.406″ Dia x 2.319″ L (10.30mm x 58.90mm)
Manufacturer Part Number: PV-2A10-T
Manufacturer: Eaton – Bussmann Electrical Division
Datasheet: Datasheet
Bussmann / Eaton PV Fuses are a range of fuse links in a 10mm x 38mm package designed specifically for the protection and isolation of photovoltaic strings in solar panel applications. Bussmann / Eaton PV Fuse links are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays. These PV Fuses feature 1000VDC rated voltage and rated breaking capacity of 33kAdc. These Busmmann / Eaton pv fuses also feature an amp range of 1A to 6A, 8A, 10A, 12A, and 15A.
Specs: PV-2A10-T
