Description

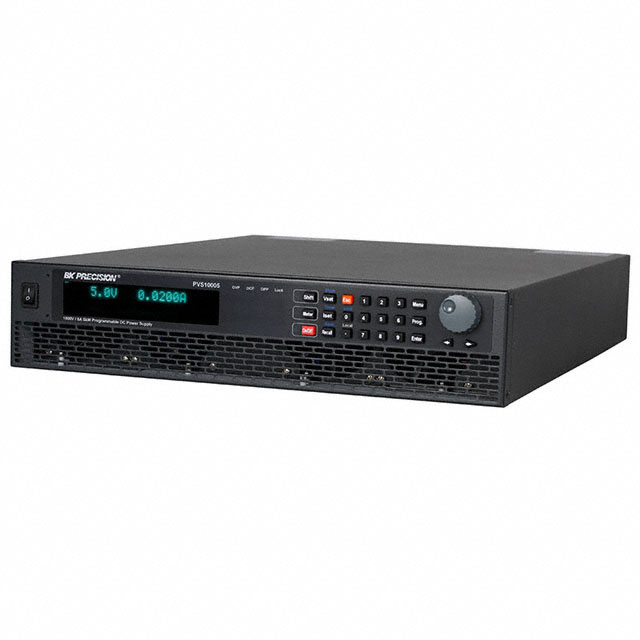

PVS10005 B&K Precision Power Supply Bench (AC to DC) 170 ~ 265VAC 5000WVFD 0 ~ 1000VDC 0 ~ 5A Memory, Programmable, GPIB, LAN, RS232, and USB Interface. The PVS10005 programmable DC power supply offers clean output power up to 5 kW, excellent regulation, and fast transient response time characteristics in an industry-leading 2U package. These power supplies provide many useful features such as high-programming resolution, multiple remote interfaces for test systems, and a built-in SAS (solar array simulator) function to generate PV (photovoltaic) I-V curves. The PVS Series is well suited for both bench use and ATE systems integration, R&D, design verification, production test, and high voltage testing. In particular, the low-noise characteristic of the PVS Series makes these instruments ideal for motor inverter testing. When operated with the optional SAS software, these power supplies can be used for solar array testing applications.
The PVS10005 from B&K Precision is a high power programmable DC power supply. This power supply offers maximum output power of 5000W and has excellent regulation, fast transient response time characteristics. It provides many useful features such as high programming resolution, multiple remote interfaces for test systems and built-in SAS (solar array simulator) function to generate PV (photovoltaic) I-V curves. The PVS series is well suited for bench use, ATE system integration, R&D, design verification, production test and high voltage testing. The low-noise characteristics of the PVS series makes instruments ideal for motor inverter testing.
Compact & high power density, convenient single phase AC input configuration
Line regulation of 100mV & 2.5mA, load regulation of 100mV & 5mA
Output voltage range from 0V to 1000V
Output current range from 0A to 5A
High voltage and current resolution of 100mV, 0.1mA
Standard dimensions of 420mm x 88mm x 532mm ( W x H x D )
Fast transient response time of ≤ 0.5ms, bright VFD display & efficiency of 90%
Adjustable voltage, current slope & external analogue programming & monitoring interface
9 user-defined programs with up to 100 programmable steps each
Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
Applications
Test & Measurement, Industrial
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Programmable
Input Voltage: 170 VAC to 265 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 1 kVDC
Output Current-Channel 1: 0 A to 5 A
Output Power: 5 kW
Display Type: VFD
AC Supply Voltage: 170 VAC to 265 VAC
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Series: PVS
Subcategory: Power Supplies
Unit Weight: 42 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 1000VDC
Current Output: 0 ~ 5A
Size / Dimension: 20.945″ L x 16.535″ W x 3.465″ H (532.00mm x 420.00mm x 88.00mm)
Manufacturer: B&K Precision
Datasheet: PVS_Series_datasheet.pdf
