Description
QH8MA3TCR Rohm Mosfet Array N and P-Channel 30V 7A@N Channel 5.5A@P Channel Surface Mount 8-Pin TSMT Emboss T/R RoHS
Specifications
Manufacturer:ROHM Semiconductor
Product Category:MOSFET
RoHS
Technology:Si
Mounting Style:SMD/SMT

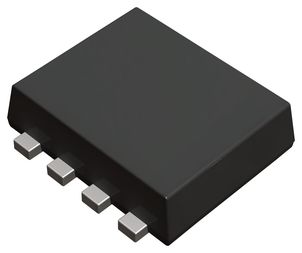

Package / Case:TSMT-8
Transistor Polarity:N-Channel, P-Channel
Number of Channels:2 Channel
Vds – Drain-Source Breakdown Voltage:30 V
Id – Continuous Drain Current:7 A, 5.5 A
Rds On – Drain-Source Resistance:22 mOhms, 37 mOhms
Vgs – Gate-Source Voltage:20 V
Vgs th – Gate-Source Threshold Voltage:1 V, 2.5 V
Qg – Gate Charge:7.2 nC, 10 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd – Power Dissipation:2.5 W
Channel Mode:Enhancement
Packaging:Cut Tape
Packaging:Reel
Configuration:Dual
Transistor Type:1 N-Channel, 1 P-Channel
Brand:ROHM Semiconductor
Forward Transconductance – Min:2.7 S, 3.3 S
Fall Time:5.7 ns, 20 ns
Product Type:MOSFET
Rise Time:8 ns, 12 ns
Factory Pack Quantity:3000
Subcategory:MOSFETs
Typical Turn-Off Delay Time:12 ns, 40 ns
Typical Turn-On Delay Time:7.2 ns, 8 ns
Part # Aliases:QH8MA3
Manufacturer: Rohm Semiconductor
MFG Part #: QH8MA3TCR
