Description
QRB-2210-0-NSP752-MT-00-0 Qualcomm Dragonwing Processor CPU 2.0, GPU 845, 13MP+13MP, LP4 64-bit Quad-core at 2.0 GHz with 512 KB L2 cache

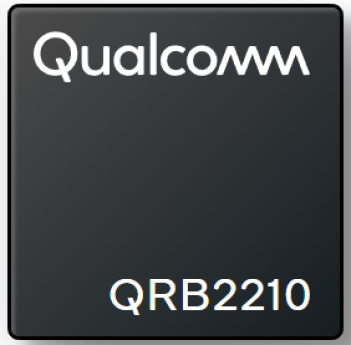

Dragonwing QRB2210
CPU 64-bit quad-core Kryo CPU
2.0 GHz
AI Performance Hexagon Processor
GPU
Adreno 702 @ 845 MHz
OpenGL ES 3.1, Vulkan 1.1
OpenCL 2.0
3D graphics accelerator with 64-bit addressing
Memory 2x 16-bit LPDDR4X @ 1804 MHz
1x 32-bit LPDDR3 @ 933 MHz
Addressable
Memory
Up to 4 GB non-pop
Audio DSP
(LPASS)
Hexagon DSP
Dual DSP Core supports:
Low-power, always-on processing
Audio signal processing
Lightweight AI inference tasks
Qualcomm Aqstic™ smart speaker amplifier
Qualcomm® aptX™ Voice
Display Support
Adreno DPU 920
One 4-lane DSI D-PHY 1.2 port, up to 1.5 Gbps per lane
with split link support
1x HD+ (720 x 1680) @ 60 Hz
1x 4-lane DSI
Video Decode 1080p 8-bit @ 30 fps
Formats: H.264, H.265, VP9
Video Encode 1080p 8-bit @ 30 fps
Formats: H.264 and H.265
Camera
18-bit (Dual ISP)
2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps ZSL
2x 4-lane MIPI-CSI
D-PHY 1.2 @ 2.5 Gbps or C-PHY 1.0 @ 10 Gbps
USB USB 3.1 Type-C/Micro USB
Other I/O
102x GPIO, 27x LPI GPIO
10x QUP** ports (support UART, I2C, I3C, SPI)
9x PWM
2x I2C dedicated interfaces for camera
Storage eMMC 5.1
SD 3.0
Wi-Fi/Bluetooth/
WAN
802.11a/b/g/n/ac, Bluetooth 5.0, GNSS
OS Yocto Linux and Debian Trixie 13
Package 12 x 12.4 x 0.91 mm; 0.4 mm pitch
Temp. Range (Tj) -30 to 95 °C
Longevity May 2032*
