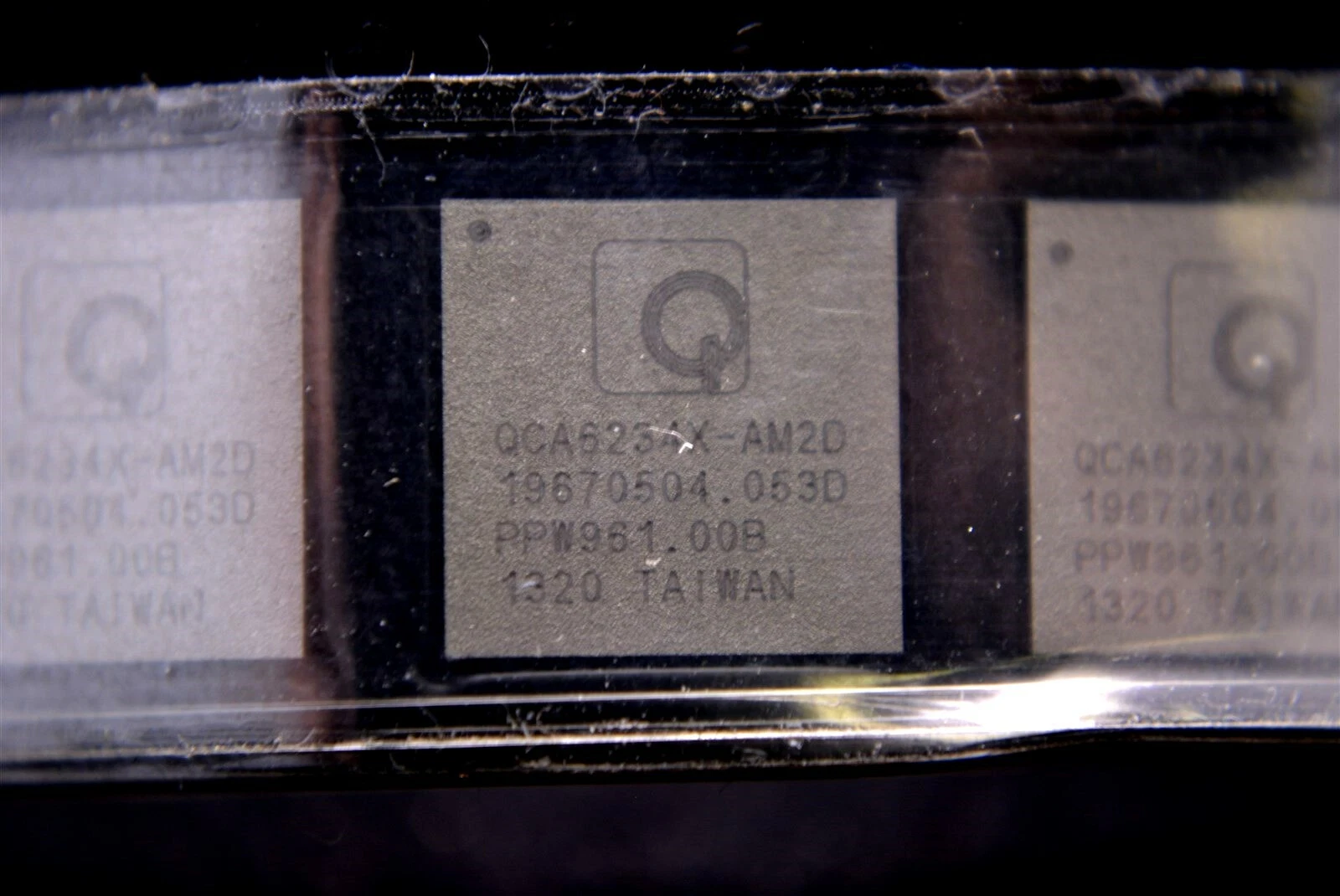

QUALCOMM QCA6234X-1M2D IEEE 802.11a/b/g/n WLAN and Bluetooth v4.0 (BLE) Combo Module Chip, Class 1.5, 113-Pin LGA
The QCA6234 chip is a complete, small form factor 2×2 802.11 a/b/g/n WLAN plus BT4.0 combo solution optimized for low-power, mobile consumer electronic devices. The device integrates all WLAN and Bluetooth® (BT) functionality in a single package to support a low cost, layout-friendly implementation while allowing flexibility for platform specific customization. The QCA6234 chip integrates the complete transmit/receive RF paths including baluns, switches, and a reference oscillator. The device is also pre-calibrated, eliminating the need for customer production calibration.
Part Status Obsolete
Automotive
PPAP Construction WLAN+BT
Style Chip WLAN Maximum Data Rate (MBps) 144.4
WLAN Frequency Range (MHz) 2412 to 2484|5180 to 5925 BT Interface UART
WLAN Maximum Output Power 19dBm(Typ) Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 85 Packaging Tray
BT Protocol Supported Bluetooth v4.0(BLE) WLAN Technology IEEE 802.11a/b/g/n
Mounting Surface Mount Package Height 1.04
Package Width 9.2 Package Length 9.2
PCB changed 113 Standard Package Name LGA
Supplier Package LGA Module Pin Count 113Datasheet:Qualcomm/qca6234_datasheet.pdf
