Description

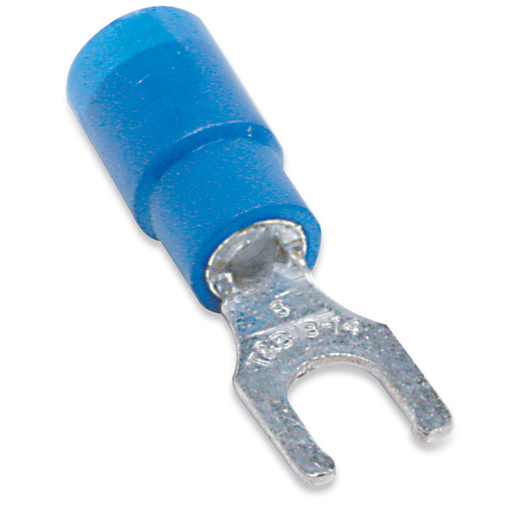

RB2207-200M Thomas & Betts Expanded Vinyl Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack,^RoHS
Specifications
Type Expanded Insulated
Series RB Series
Conductor Size 18 to 14
Stud Size #6
Length 0.97
Barrel Type Brazed Seam/Serrated
Tongue Type Locking Fork
Tongue Size 0.31 in W x 0.03 in THK
Voltage Rating 600
Specifications 0.2 in Dia Max Insulation, 0.27 in Clearance
Temperature Rating 105
Material Copper/Vinyl
Finish Electro TiN Coated
Color Blue
Family Name:Sta-Kon and Catamount Terminal
Sta-Kon RB2207-200 Expanded Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper/Vinyl, Blue is available to buy in increments of 1000
Sta-Kon Fork Terminal, Expanded Insulated Locking, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.2 in Dia Max Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electro-Plated Tin, Blue
Other Terminals
MfrcodeT&B
Minimum Conductor Size18 AWG
Stud Size#6
Temperature Rating105 DEG C
Insulation TypeVINYL INSULATED
Standard Package1000 PER MYLAR TAPE
ApprovalUL 486-A, CSA 22.2
Additional InformationSIZE 0.97 INCH LENGTH X 0.31 INCH WIDTH FINISH ELECTROPLATED TIN WITH MYLAR TAPE
TypeLOCKING
Pkg UOMEA
Pkg Qty5000
Pkg TypePK
Product NameFORK TERMINAL
Mfr FullnameTHOMAS & BETTS
Mfr UNSPSC39121432
Catalog NumberRB2207-200M
Maximum Conductor Size14 AWG
Part # Alias: RB2207200M
Manufacturer: TE Connectivity
MFG Part #: RB2207200M
