ID-12 Electronic Components

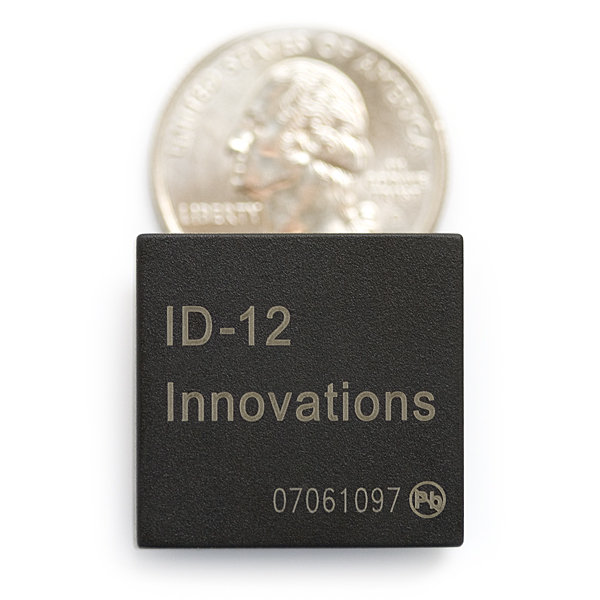

RFID Reader ID-12 (125 kHz)

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-12LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

ENQUIRY!
SKU: ID-12 Category: Tags: , Brand:

Description

This is a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing (breakout board available below). Power the module, hold up a card, and get a serial string output containing the unique ID of the card.
^
^Features:
^
^5V supply
^125kHz read frequency
^EM4001 64-bit RFID tag compatible
^9600bps TTL and RS232 output
^Magnetic stripe emulation output
^100mm read range
^Dimensions: 25x26mm
Manufacturer Part Number: ID-12
Manufacturer: Electronic Components
