Description

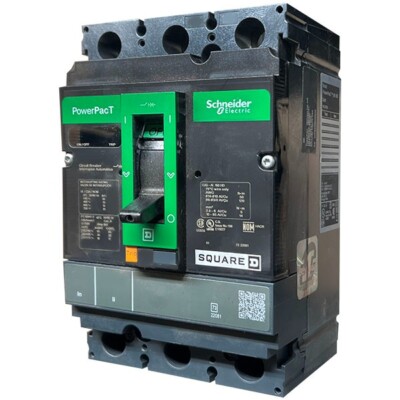

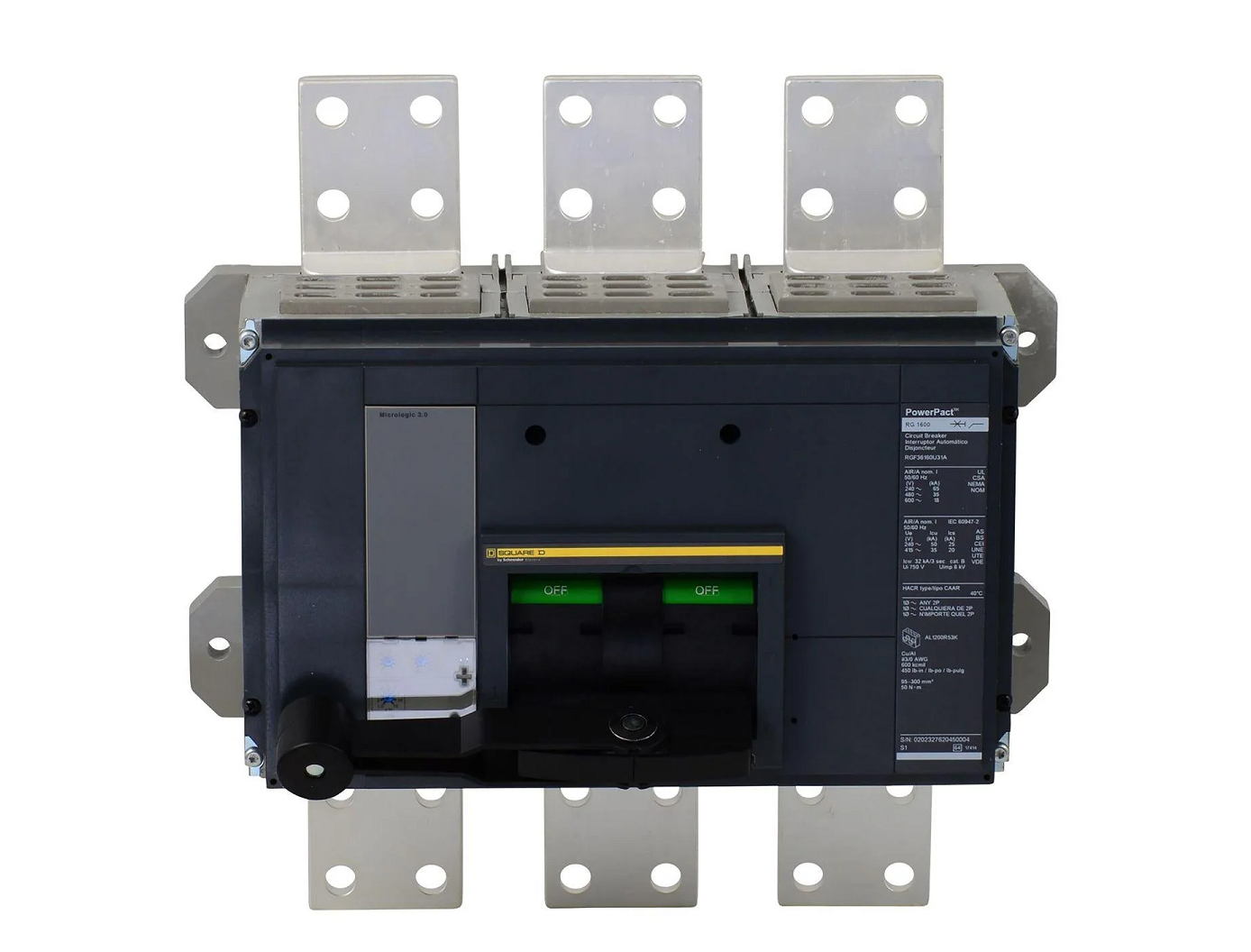

RGF36160CU44A Square D / Schneider Electric PowerPact MasterPact 100% Rated Molded Case Circuit Breaker, 600 V AC, 1600 A, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip Chassis Mount Lever 3-Poles CSA, UL
Amps 1600 Amp
Breaker Interrupt Rating 1 65KA @ 240VAC
Breaker Interrupt Rating 2 35KA @ 480VAC
Breaker Interrupt Rating 3 18KA @ 600VAC
Breaker Line Side Term Method Busbar (No Lugs)
Breaker Load Side Term Method Busbar (No Lugs)
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Ammeter, LSIG
Frame R-Frame
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 18KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 1600Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 600V
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: 600V AC
Current Rating: 1.6kA (Amps)
Package: Box
