Description

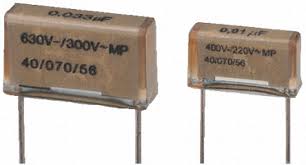

PME261JC6100K Evox – Rifa Metallized Paper Capacitor 0.1uF 1000V Radial
The PME261JC6100K paper capacitor is typically recommended for use in DC and low frequency pulse applications. The outstanding self-healing properties give it a very long life even when incurring frequent overvoltages. The metallized paper provides superior stability giving outstanding reliability properties especially in applications having continuous operation.
Features:
– High dU/dt capability.
– Excellent self-healing properties.
– Good resistance to ionisation due to impregnated dielectric.
Capacitance: 0.10uF
DC Voltage: 1,000 VDC
AC Voltage: 500 VAC
Tolerance: 10%
Climate Category: 40/070/56
Dissipation Factor: ≤ 1.3% @ 1 kHz
Dimensions (0.5mm):
Length: 24.0mm (0.94″)
Width: 11.3mm (0.44″)
Height: 16.5mm (0.65″)
Lead Space: 20.3mm (0.80″)
Manufactured by: Evox Rifa
Part Number: PME261JC6100K
|
Normen: Material UL94V-0 |
Abmessungen (mm)
µF B H
L
Raster- maß
Leiter- Ø
Evox Rifa Teile-Nr.
220V AC/400V DC
0,1 7,3 13
19
15,2
0,8
PME261KB6100K
300V AC/630V DC
0,1 7,6 14
24
20,3
0,8
PME261EC6100K
500V AC/1000V DC
0,022
7,3
13
19
15,2
0,8
PME261JB5220K
0,047
7,6
14
24
20,3
0,8
PME261JC5470K
0,1
11,3
16,5
24
20,3
0,8
PME261JC6100K
Manufacturer Part Number: PME261JC6100K
Manufacturer: Electronic Components
