Description

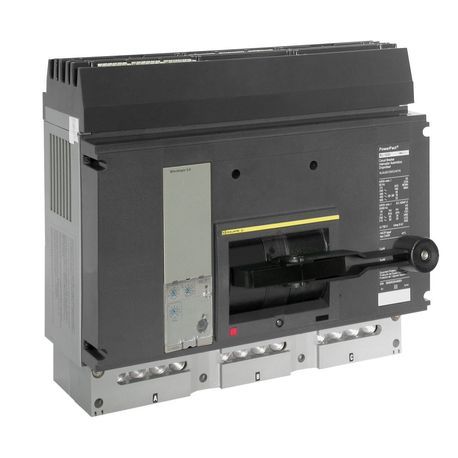

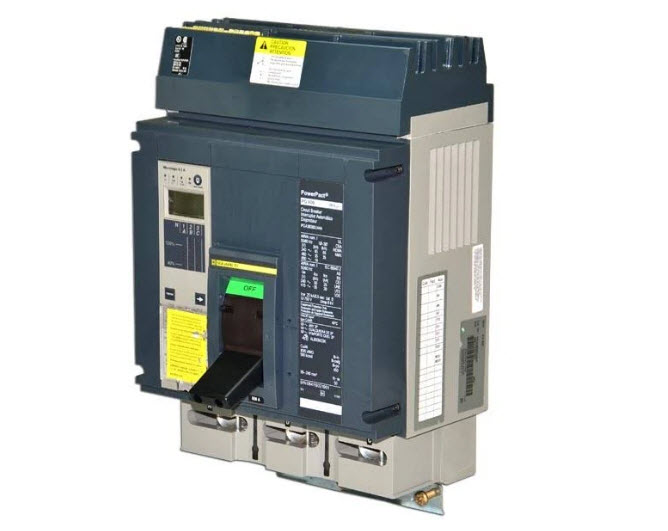

RJA36100CU33A Schneider – Square D Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 5.0, 100%, Din Mounting Plug-On
RJA36100CU33A is a Square D PowerPact R-frame molded case circuit breaker designed for reliable power distribution in commercial and industrial applications. This 3-pole, 1000A, 600VAC breaker features a 25kA interrupt rating and is equipped with the MicroLogic 5.0 electronic trip unit for precise protection and monitoring. The unit is I-Line compatible and rated for 100% continuous current, making it suitable for demanding environments. Engineered for durability and safety, the RJA36100CU33A is UL listed and meets rigorous industry standards. Its compact design and interchangeable trip units allow for flexible installation and easy maintenance. The breaker is designed for manual operation and is suitable for use in switchgear and panelboards.
Specifications
Poles (Molded Case Breaker) Three Pole
Amperage (Molded Case Breaker) 1000 Amp
Maximum Voltage (Molded Case Breaker) 600 VAC
Interrupt Rating (Molded Case Breaker) 25 Ka
Manufacturer Schneider Electric
Manufacturer Square D
Component Molded Case Circuit Breaker
Amps 1000 Amp
Breaker Interrupt Rating 1 100KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 25KA @ 600VAC
Breaker Line Side Term Method I-Line
Breaker Load Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Std, LSI
Frame P-Frame
Height 10.5
Length 20.5
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 25KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 1000Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785901000000
Volts 600V
Width 12
