Description

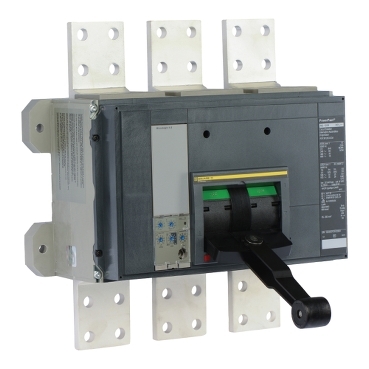

Square D RKF36120 Schneider Electric Molded Solid State Circuit Breaker 600V 1.2kA Chassis Mount Lever 3-Poles CSA, UL, Molded Case Current-Limiting Circuit Breaker (MCCB) – Square D by Schneider Electric (PowerPact R-Frame) – 3 poles (3P3d) – Rated current 1200A – Rated voltage 600Vac – Short circuit breaking capacity 65kA (600Y/347Vac) – Electronic trip unit (ET1.0I (LI)) – Busbar connection
Amps 1200 Amp
Breaker Interrupt Rating 1 65KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 65KA @ 600VAC
Breaker Line Side Term Method Busbar (No Lugs)
Breaker Load Side Term Method Busbar (No Lugs)
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Frame R-Frame
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 65KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 1200Amp, 3-Pole
Trip Type Thermal Magnetic
UNSPSC 39122245
UPC 785902000000
Volts 600V
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: 600V AC
Current Rating: 1.2kA (Amps)
Package: Box
