Description
19S201-40ML5

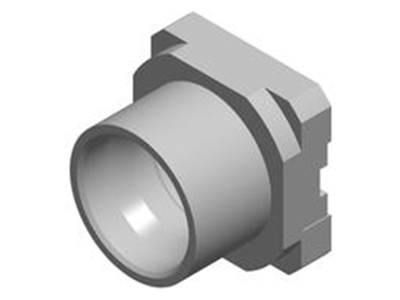

Right angle plug PCB limited detent
Electrical Data
| Parameters | |
|---|---|
| Impedance(Ω) | 50 |
| Frequency (GHz) | DC to 26.5 |
| Return Loss | ≥ 26 dB, DC to 6 GHz ≥ 21 dB, 6 to 12 GHz ≥ 18 dB, 12 to 18 GHz |
| Insertion Loss | ≤ 0.05 x √f(GHz) dB,DC to 18 GHz |
Machinery Data and Drawing
| Parameters | ||
|---|---|---|
| Mating cycles | Smooth bore | – |
| Limited detent | ≥500 | |
| Full detent | – | |
| Drawing | ||
Environmental Data
| Parameters | |
|---|---|
| Temperature range (?) | -65~+155 |
| RoHS | Compliant |
Packing
| Parameters | |
|---|---|
| Weight(g/pce) | 0.4 |
Rosenberger 19S201-40ML5 RF Connector, Control Components, Coaxial Components
19S201-40ML5
SMP; Male
Manufacturer: Rosenberger
Status: Standard
Datasheet: 19S201-40ML5 DataSheet
RoHS Compliance: Rosenberger, 19S201-40ML5, RF Connector, SMP; Male (Rohs Compliant), RFMW Ltd (RFMW) Yes
Specifications:
RF Connector Type:
SMP
Max. Frequency:
26.5 GHz
Impedance:
50 Ohms
Interface Type:
Male/Plug
Orientation:
Right Angle
Mounting Style:
PCB
Termination Style:
Solder
Termination Type:
Surface Mount PCB
Outer Body Plating:
Gold
Inner Contact Plating:
Gold
Manufacturer:Electronic Components
Datasheet:19S201-40ML5.pdf
