Description

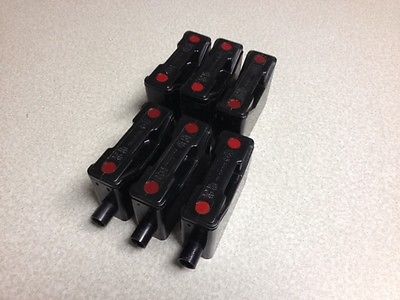

RS20H ALSTOM Red Spot Fuse Holder RS20H, 20 Amp, 690 V, Front Wire Connection
Rated current (Ie)20A
Rated voltage (Ue)690V
Rated peak withstand current80kA
Rated impulse withstand voltage (Uimp)8kV
Screw mounting size (all)M5
Weight 1P (Front wire)0.1kg
Max Cable Size (front / rear)10mm2
Maximum tightening torque (front)1.5-2Nm
Fuse type (suit all)NIT
RED SPOT, BLACK
FRONT CONNECTION
DIM: H79 x W27 x D55
I / V MAX: 20A / 690V
CABLE SIZE MAX: 10mm2
Standards: BS88-2, AS60269, IEC269-2-1.
Manufacturer Part Number: RS20H
Manufacturer: Electronic Components
