Description

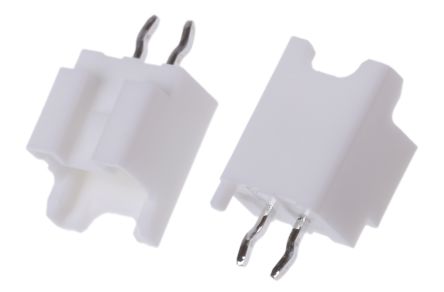

S02B-PASK-2(LF)(SN) JST Connector 2 Position 2.0mm Through Hole Wire to Board Single Row Shrouded Header
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length – Mating 0.126″ (3.20mm)
Contact Length – Post 0.134″ (3.40mm)
Insulation Height 0.256″ (6.50mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Manufacturer Part Number: S02B-PASK-2(LF)(SN)
Manufacturer: Electronic Components
