Description

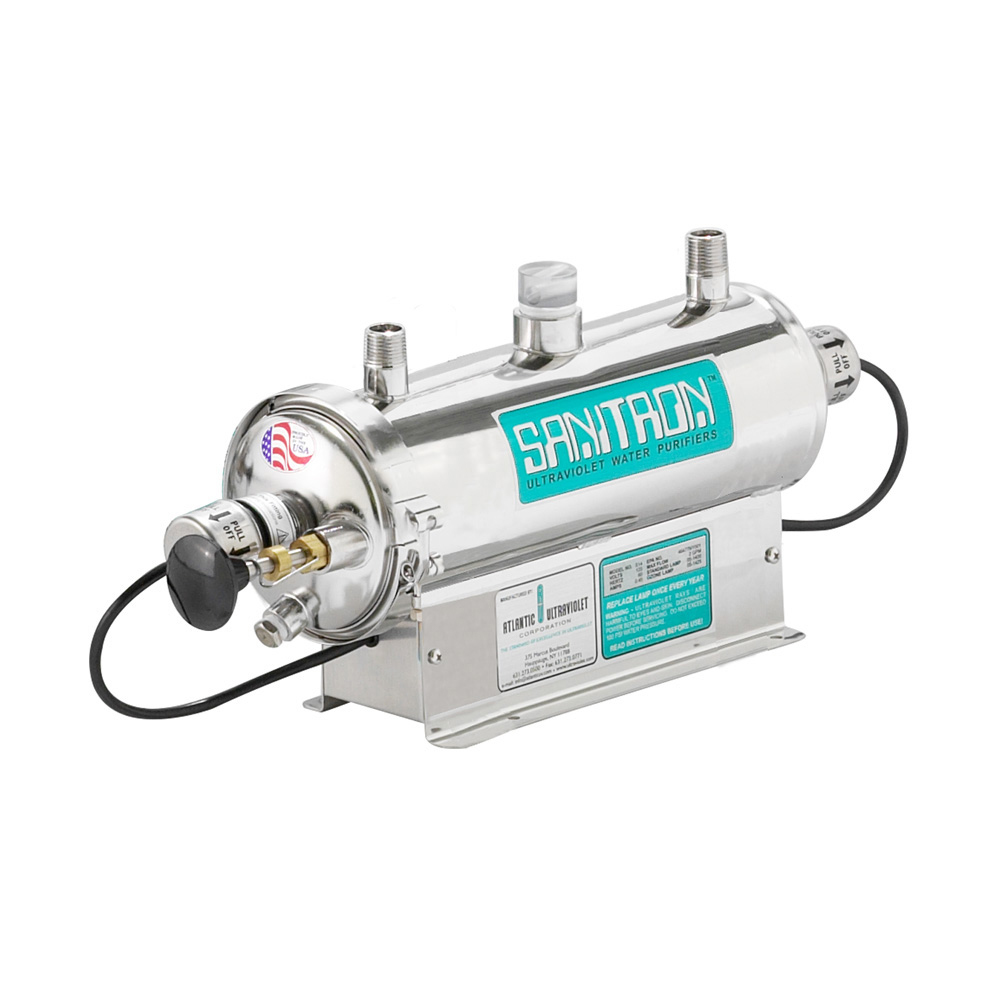

S17A Atlantic Ultraviolet / Sanitron Ultraviolet Water Purifier 3 Gallons Per Minute UV System 3/4″ NPT
The Sanitron S17A UV Unit by Atlantic Ultraviolet is part of Atlantics expansive Sanitron line that covers everything from residential to commercial to industrial uses. The S17A is 17 long to provide 3 gallons per minute and uses 1 lamp and sleeve. The Sanitron series features an Easy-Off end cap, a removable flanged head for easy disassembly in case of repairs with no special tools, a drain plug, a manual wiper and wiper lock to provide easy cleaning of the quartz sleeve with no disassembly required, and a sight port to allow easy visual confirmation of UV lamp operation. The Sanitron has several options such as a lamp status alarms, a safety sensor, an ultraviolet monitor, elapsed time indicator, solenoid valve, flow control, and more. The S17A is a cheaper non-NSF certified model.^
Features
EASY-OFF END CAP: Easily removable end cap to change UV lamp effortlessly.
DRAIN PLUG: Accessible plug for simple draining of purifier chamber.
SIGHT PORT: The Sanitron systems are equipped with a sight port for easy viewing of lamp operation.
WIPER: All Sanitron systems come equipped with a special patented dual action wiper to make periodic cleaning of the quartz sleeve effortless, extend the life of the quartz sleeve, and keep the output of the UV lamp at peak levels.
Specs
Flow Rate: 3 Gallons Per Minute
Application: Point-of-Entry
Power: 100-240V 50-60Hz 50W N. American Plug
Overall Dimensions: 19.375″ x 4.3125″
Inlet Dimensions: 3/4″ NPT
Outlet Dimensions: 3/4″ NPT
Specifications:
2 to 416 gallons per minute, 120 to 25,000 GPH
Potable and high purity water applications
304 or 316 stainless steel, electropolished and passivated
Easy off retainer cap for effortless lamp change
Drain plug for in-place drainage of the purifier chamber
Sight port to view germicidal lamp operation
Removable flanged head for easy disassemble
Patented dual action wiper mechanism for cleaning of the quartz sleeve
Interchangeable chamber for 5,000 GPH and up
Maximum recommended operating pressure for all purifiers is 100 p.s.i.
Pressure drop at maximum recommended flow rate is less than 5 p.s.i.
Manufacturer:Electronic Components
Datasheet:Ultraviolet-Sanitron_S17A-S50C.pdf
