Description

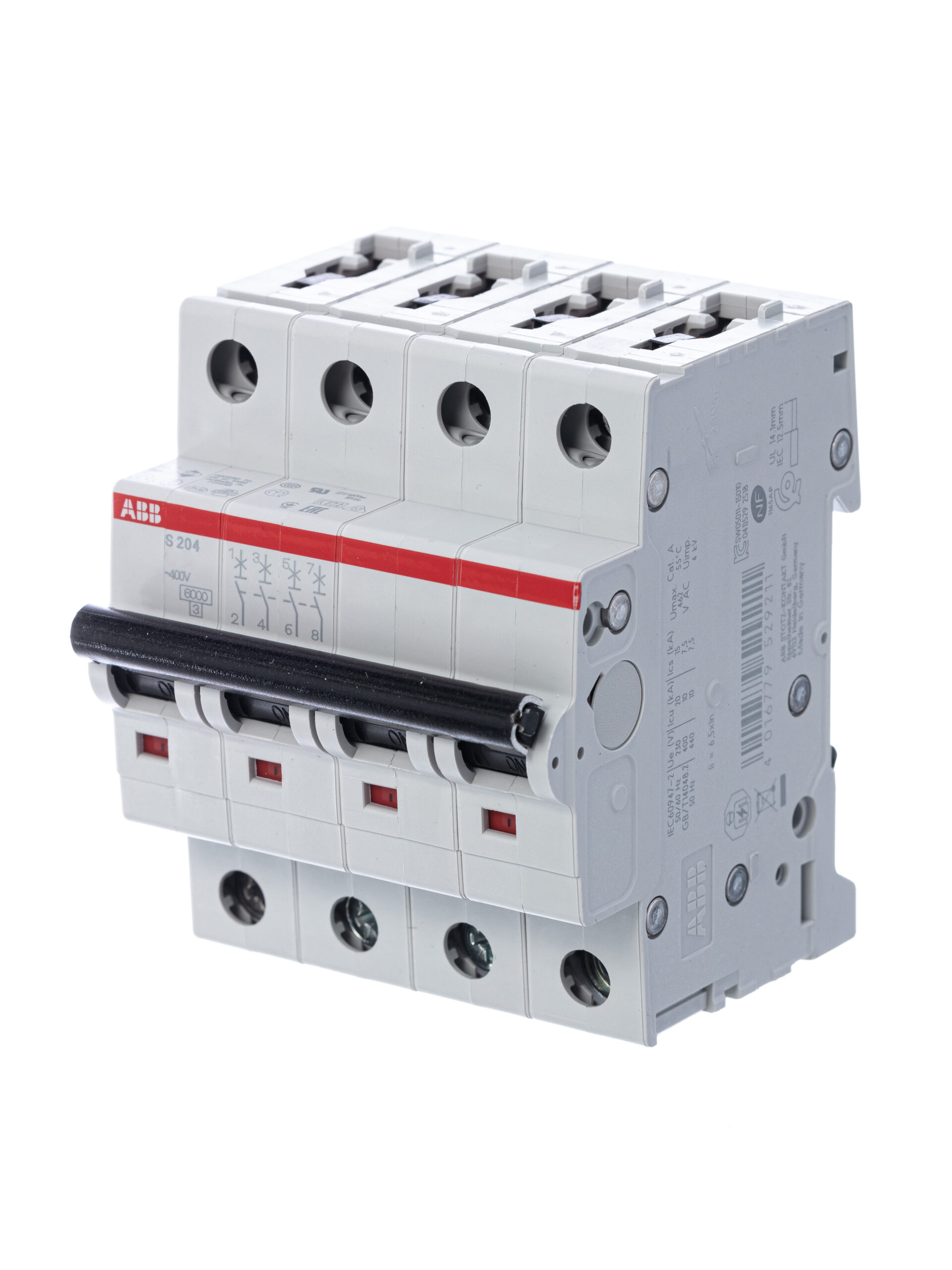

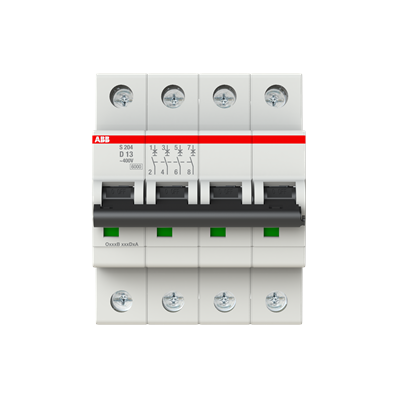

S204-D13 ABB ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 13A, Type D, 400V ac AC, 6 kA Breaking Capacity
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Specs
Product Type Miniature Circuit Breaker
Actuator Type Toggle
Number of Poles 4
Voltage Rating 400V ac
Interrupt Rating 10kA
Current Rating 13A
Trip Type Thermal (Overload Protection);Electromechanical (Short Circuit Protection)
Terminal Type Screw
Mounting Type DIN Rail Mount
IP Rating IP20;IP40
Protection Features Overload Protection;Short Circuit Protection
Operating Temperature Range -25 to +55°C
Dimensions 70 x 69 x 88mm
Standards Met IEC/EN 60898-1;IEC/EN 60947-2;UL 1077;CSA 22.2 No. 235
