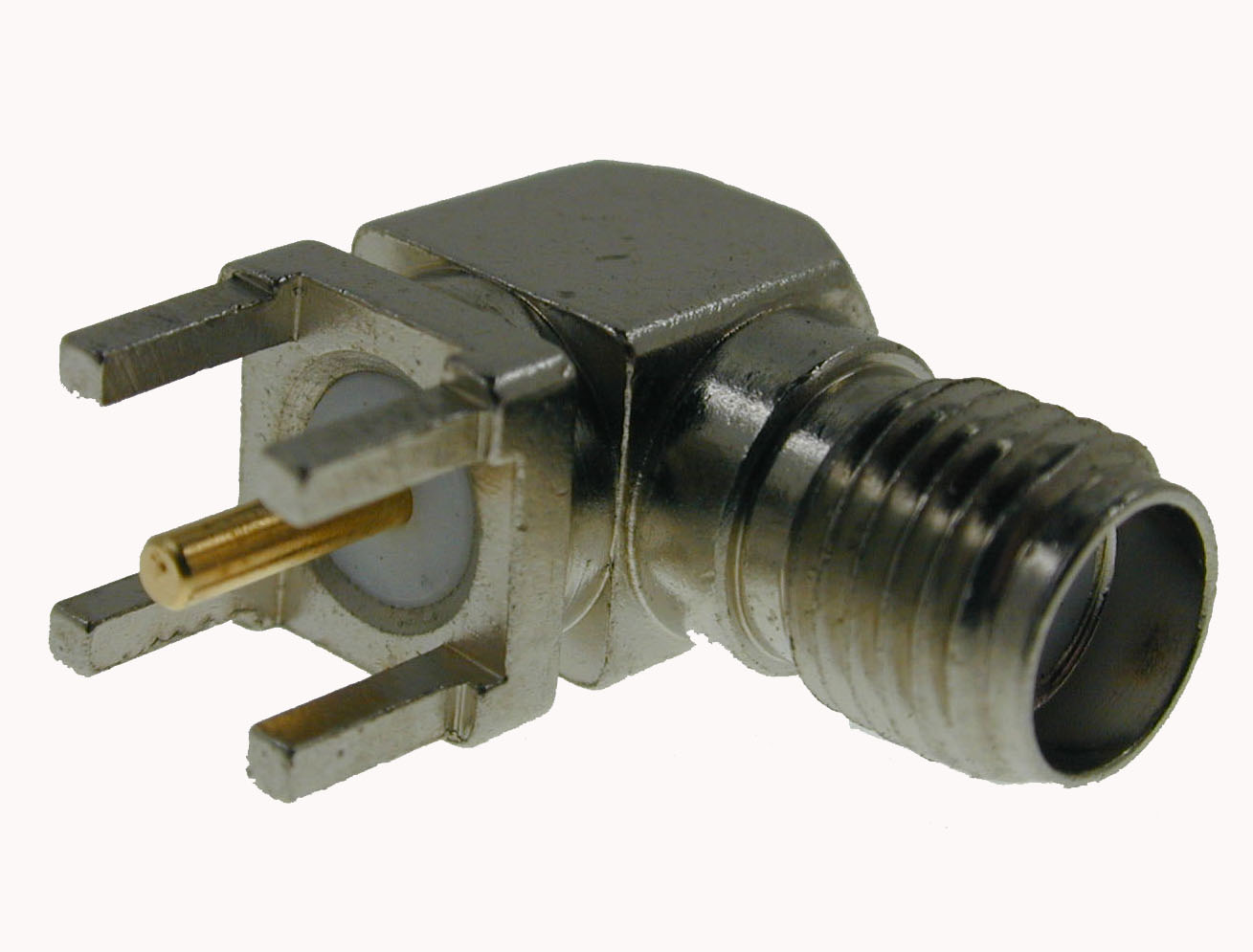

S209L0G29 S-CONN SMA PC mount Jack Female Right Angle 50ohm 18GHz
Specifications
SERIES SMA
TYPE Jack
MOUNTING TYPE PC mount
IMPEDANCE (Ohms) 50
GENDER Female
WIRE CONNECTION PCB
MAX FREQUENCY (MHz) 18000
OVERALL LENGTH (mm) 15
HEIGHT (mm) 9.9
OVERALL WIDTH (mm) 7
OPERATING TEMPERATURE RANGE -65~165 c
ORIENTATION Right angle
BODY MATERIAL Brass
CONTACT MATERIAL Gold plated brass
VSWR @ 433 MHz 1.052
RF LEAKAGE @ 433 MHz (dB Min) -89.57
INSERTION LOSS @ 433 MHz (dB Max) 0.0263
MATING TYPE Threaded
BODY PLATING Gold
FOOT PRINT (mm) 7.0 x 15.0
VSWR @ f max 1.14
RF LEAKAGE @ f max (dB Min) -72
INSERTION LOSS @ f max (dB Max) 0.169
OVERALL HEIGHT (mm) 13.8
PACKING STYLE Bulk
