Description

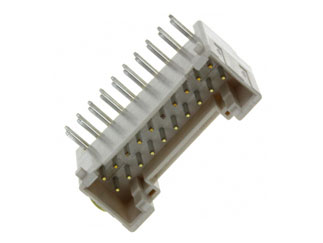

S20B-PUDSS-1(LF)(SN) JST Right Angle PCB Header Connector Header Through Hole, Right Angle 20 position 0.079″ (2.00mm) Side Entry RoHS
PUD Series 2.0mm pitch wire-to-board PCB header connectors with a low insertion force and a compact high density double row design for a stable contact performance in high vibration environments. These PUD 2.0mm PCB header connectors feature a locking mechanism which produces an audible click when the header and socket are mated and are available as through hole mounting with a vertical mounting orientation with or without a PCB locating boss (BxxB-PUDSS = without boss, BxxB-PUDSS-1 = with boss) or a right angle mounting orientation with a mounting boss. SMT versions are also available.
Specification
Series PUD
Pitch 2mm
Number of Contacts 20
Number of Rows 2
Body Orientation Right Angle
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Material Copper Alloy
Contact Plating Tin
Current Rating 3A
Manufacturer:JST
Datasheet:S20B-PUDSS-1(LF)(SN).pdf
