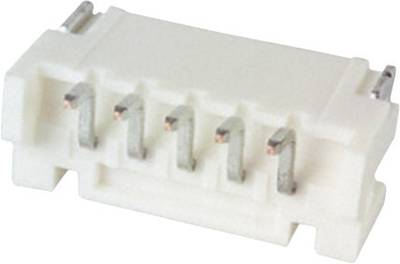

S5B-PH-SM4-TB(LF)(SN) JST Built-in pin strip (standard) PH Total number of pins 5 Contact spacing: 2 mm Surface Mount, Right Angle RoHS
Detachable connection of cable at printed circuit board The catch bar at casing allows an audible click while plugging. A circular trough at the plug connector allows a reverse voltage protection. Can be soldered very well due to pre-tin coating
Technical data
Connector type: Pin strip, right angle:
Connectors: wire-to-board:
Series: PH:
CS: 2mm:
Pins per row: 5:
Total number of pins: 5:
Pin diameter: 0.5mm:
Pin shape: Square:
Nominal current: 2A:
Nominal current – rounded value: 2A:
Content: 1pc(s):
Dim: (L x W x H) 11.9 x 5 x 9.4 mm:
Colour: Ecru:
Height: 9.4mm:
Length: 11.9mm:
Width: 5mm:
Industrial packaging: No:
Connection: SMT:
Connector contact surface: Tin plated:
Board contact surface: Tin plated:
Connector orientation: Parallel (to the PCB):
Manufacturer part #: S5B-PH-SM4-TB (LF)(SN):
Type: S5B-PH-SM4-TB (LF)(SN):
Material (details): PA 66 UL94V-0:
Type: Connector pin strip, straight:
Insulation material: Polyamide:
Nominal voltage (details): voltage:100V AC:
Nominal current (details): 2A:
No. of rows: 1:
Cross section: 0.05 – 22mm:
Connection: Crimp:
Contact material: Phosphor bronze:
Case material: Polyamide:
RoHS-compliant: Yes:
Product type: Built-in pin strip (standard)
Manufacturer: Electronic Components
MFG Part #: S5B-PH-SM4-TB(LF)SN
