Description
SANYO Aluminum Electrolytic Polarized Capacitor 33MFD 20%, OS-CON, SC SERIES +55C+105C,120HZ Radial
Features
■ Low ESR obtained by using conductive polymer electrolyte.
Suitable as a decoupling capacitor, because its impedance has ideal frequency characteristics.
Suitable as a smoothing capacitor, enabling miniaturizing switching power supplies, because it allows large ripple current.
Suitable as a backup capacitor for the circuits that consume large current at a high speed.
■Pb-free Compliant
All the models are completely Pb-free and RoHS compliant products.
■Long life.※
Some special series can be expected 20,000h life at 105°C, suitable for long-operating industrial equipments.
■Superior temperature characteristics.
Its ESR has stable characteristics at a temperature from -55°C to 105°C (partly 125°C), suitable for applications used at low temperatures (under 0°C).
■Wide capacitance range from 3.3μＦ to 2700μＦ.
An array of various series covers wide capacitance range.
■High voltage, high reliability.
High reliability products have achieved the highest rated voltage 35V and the guarantee of 85°C*85%RH(SVPD series), suitable for automotive and industrial equipments.
OS-CON is an aluminum solid capacitor with high conductive polymer. OS-CON acquires low Equivalent Series Resistance (ESR), excellent noise reduction capability and frequency characteristics. In addition, OS-CON has a long life span and its ESR has little change even at low temperatures since the electrolyte is solid.

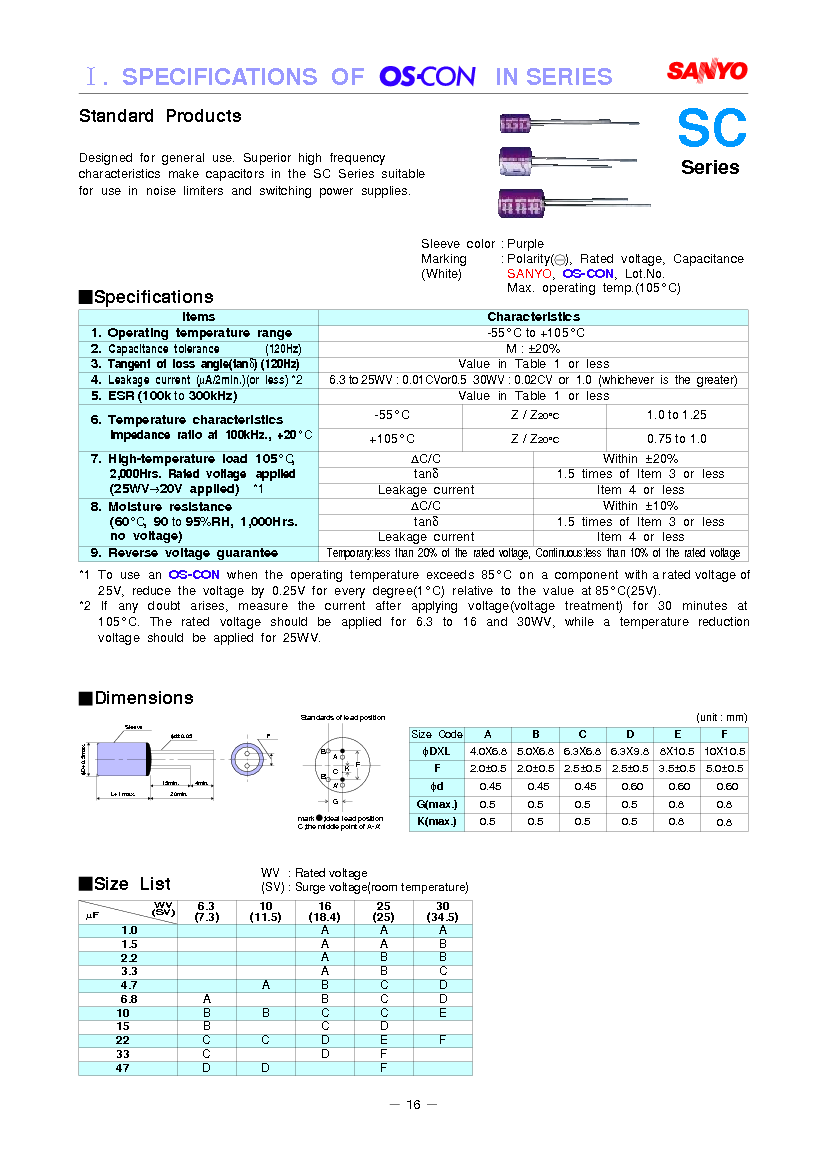

sanyoi-oscon-general-catalog
