Description

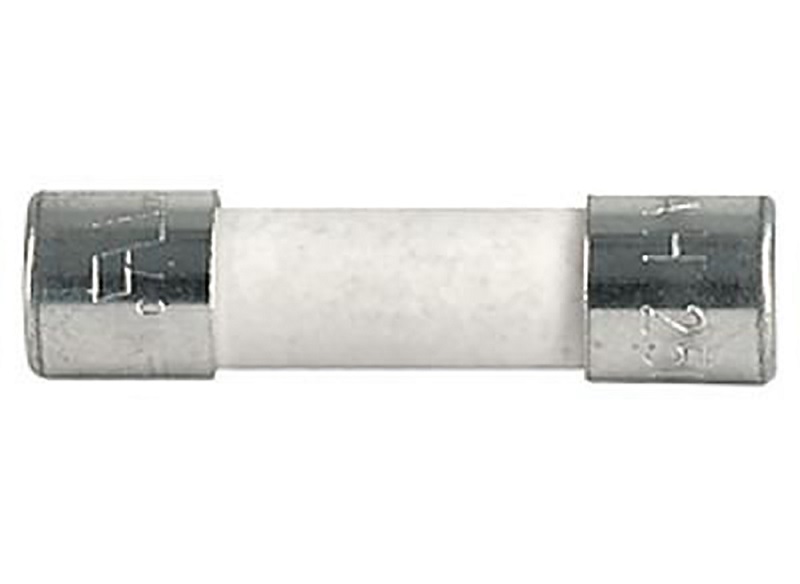

Schurter 0001.1014 Ceramic Cartridge Fuse 250V 10A 5mm x 20mm
Professional range of Schurter fuses from the SP series. The fuses are available in a variety of current ratings.
Pigtail Type
Nickle Plated Copper Alloy endcaps
Ceramic
Cylindrical
Mounting Style – Holder/Clip
Quick Acting-Ceramic Bodied (fuses)
Very high breaking capacity
Good mechanical/vibration characteristics
Ceramic cartridge bodies are sand filled
Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
Specifications
Manufacturer: Schurter
Product Category: Cartridge Fuses
RoHS: RoHS Compliant
Product: Ceramic Fuse
Current Rating: 10 A
Fuse Type: Fast Blow
Fuse Size / Group: 5 mm x 20 mm
Voltage Rating AC: 250 V
Mounting Style: Holder / Clip
Series: SP 5×20
Packaging: Bulk
Body Style: Cylindrical
Brand: Schurter
Diameter: 5.2 mm
Interrupt Rating: 1.5 kA
Length: 20 mm
Operating Temperature Range: – 55 C to + 125 C
Product Type: Ceramic Fuse
Factory Pack Quantity: 10
Termination Style: Clip
Type: Specialty Fuses
Unit Weight: 0.040212 oz
Manufacturer Part Number: 11014
