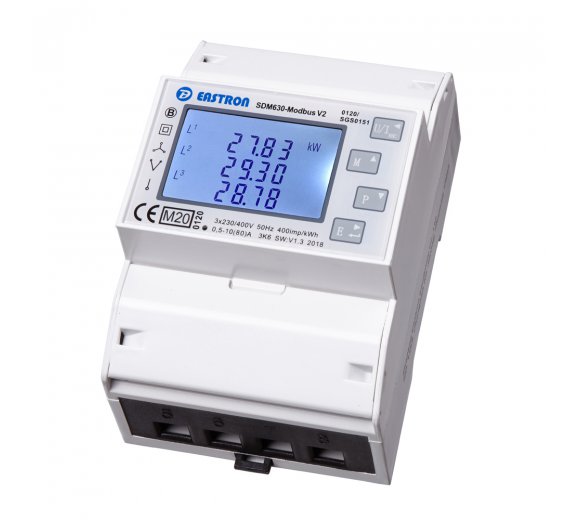

SDM630-Modbus V2 Eastron Multifunction Power Meter Down Counter incl. 2x S0, MuFu meter for DIN rail
A universally in 1-phase alternating current (1P2W) and 3 phase electricity networks (3P3W 3p4w) usable smart meters with a variety measurement and display options.
Its small width of only 4 modules with simple snap-on mounting for 35mm DIN mounting rails and its large load area of ??up to 100A this device is the direct measurement rounder.
The readability of the clear and bright display makes addition to the simple and direct operation of only a part of the countless benefits. In addition, the SDM630 Modbus, as its name suggests, is a RS485 Modbus interface for remote reading and remote maintenance, as well as 2 separate pulse outputs for import and export, which in turn distinguishes him into an optimal device in the photovoltaic technology.
characteristics
LCD digit and character display with blue backlight
direct operation by buttons on the front side
multiply Suitable for a phase-phase or three-phase three-phase power in 3 or 4 wire system
direct reading are kWh, kvarh, import / export kW, kVarh, KVA PF, PF1,2,3 V1,2,3, I1,2,3 Max.Demand, Hz, THD
THD% measurement (total harmonic distortion THD =) at all stages possible
RS485 MODBUS RTU communication
S0 outputs for import or export
technical info
Input: 3 phase 4 wire, 3-phase 3-wire, 1Phase 2Leiter
Input voltage: 100 ~ 280V AC (L-N) 100 ~ 480V AC (L-L)
Frequency range: 45 ~ 66Hz
Terminals up to 16mm
Current Rating: 10A
Detection current: 100A
S0 pulse outputs: 2
S0 pulse rate: P2 solid at 400 imp / kWh, P1 can be adjusted
S0 pulse length: P2 determine P1 is adjustable
RS485 serial communication MODBUS RTU
Addresses: 1 to 247
Transmission speed: 2400, 4800, 9600, 19200,38400bps
Max. Transmission Distance: 1000m
Measurement options:
Total Active Energy (kWh)
Total Reactive Energy (kvarh)
Active Power (kW)
Reactive Power (kvarh)
Apparent Power (KVA)
Power Factor
Voltage (V)
Current (A)
Frequency (Hz)
Voltage THD
Current THD
certification:
IEC 61326
IEC 61010-1
IEC 62053-21
Manufacturer:Electronic Components
Datasheet:SDM630-Modbus_Protocol.pdf
