Description

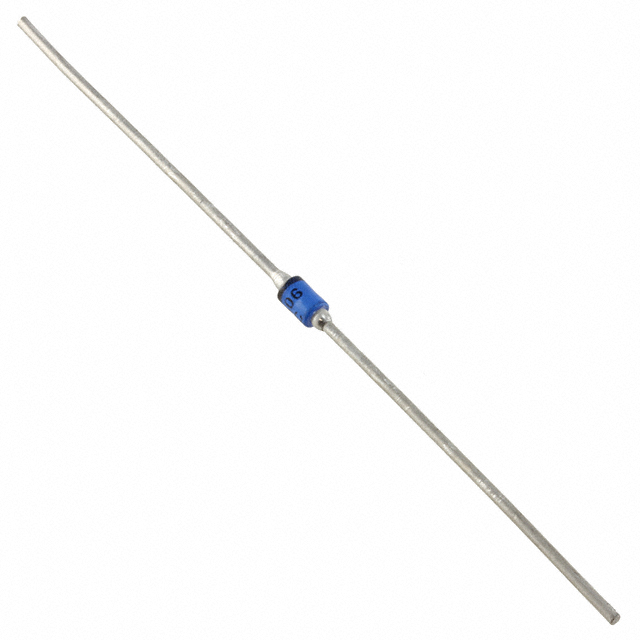

Semtech JTX1N5806 Ultra Fast Rectifier (less than 100ns) This “Ultrafast Recovery” rectifier diode series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated. The industry-recognized 2.5 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with voidless glass construction using an internal “Category 1” metallurgical bond. These devices are available in both leaded and surface mount MELF package configurations. Microsemi also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time requirements including standard, fast and ultrafast device types in both through-hole and surface mount packages.
Average Rectified Current-Max: 2.5 A
Peak Current-Max: 35 A
Reverse Voltage-Max [Vrrm]: 150 V
Reverse Current-Max: 1 µA
Forward Voltage: 0.975 V
Configuration: Single
Diode Capacitance-Max: 25 pF
Reverse Recovery Time-Max: 25 ns
Thermal Resistance: 36 °C/W
Operating Temp Range: -65 to +175 °C
Storage Temperatue Range: -65 to +175 °C
Manufacturer Part Number: JTX1N5806
Manufacturer: Semtech
