Description

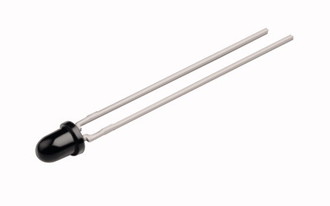

SFH 309 FA-5/6 OSRAM PHOTOTRANSISTOR NPN 3MM 900NM RoHS
Specifications
Product Category: Phototransistors
Manufacturer: Osram Opto Semiconductor
RoHS: RoHS Compliant
Product: Phototransistors
Package / Case: T-1
Mounting Style: Through Hole
Peak Wavelength: 900 nm
Maximum On-State Collector Current: 15 mA
Collector- Emitter Voltage VCEO Max: 35 V
Dark Current: 15 mA
Rise Time: 9 us
Fall Time: 9 us
Pd – Power Dissipation: 165 mW
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 100 C
Brand: OSRAM Opto Semiconductors
Collector-Emitter Breakdown Voltage: 35 V
Collector-Emitter Saturation Voltage: 200 mV
Half Intensity Angle Degrees: 12 deg
Height: 5.2 mm
Length: 4 mm
Lens Color/Style: Black
Light Current: 5 mA
Packaging: Bulk
Factory Pack Quantity: 2000
Type: Silicon NPN Phototransistor
Wavelength: 900 nm
Width: 4 mm
Part # Aliases: Q62702P5199
Manufacturer Part Number: SFH309FA-5/6
Manufacturer: OSRAM
