SGRF103-12 Sensitive; Repeatable; RF Centigrid RELAY DPDT 12VDC 800OHM DPDT, MOMENTARY, 0.015A (COIL), 12VDC (COIL), 180mW (COIL), SURFACE MOUNT-STRAIGHT
SGRF 100/103 Series
Teledyne ultra-miniature SGRF100 & SGRF 103 series relays are designed to provide a practical surface-mount solution with improved RF signal repeatability over the frequency range. These relays have a unique ground shied that isolates and shields each lead to ensure excellent contact to contact and pole to pole isolation.
These relays are engineered for use in RF attenuator, RF switch matrices, ATE and other applications that require dependable high frequency signal fidelity and performance.
High repeatability
Broader bandwidth
Metal enclosure for EMI shielding
High isolation between control and signal paths
High resistance to ESD
Specifications
Minimum Load Current 10 µA
Maximum Load Current 50 µA
Mounting Type Surface Mount
Minimum Load Voltage 10 mV
Maximum Load Voltage 50 mV
Contact Configuration DPDT
Terminal Type PC Pin
Maximum Turn On Time 6 ms
Dimensions 8.51 x 8.51 x 9.02mm
Depth 8.51mm
Control Voltage Range 12 (Nominal) V dc
Length 8.51mm
Load Voltage Range 10 ? 50 mV
Operating Temperature Range -55 ? +85°C
Number of Poles 2
Relay Type RF Relay
Special Features Broader Bandwidth, Broader Bandwidth, High Repeatability, High Resistance to ESD, High Repeatability, High Resistance to ESD
Capacitance 0.4pF
Height 9.02mm

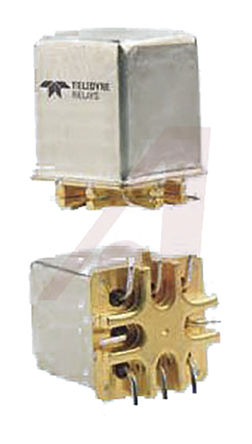

[SGRF103-12 Image] Enlarge Photo The ultraminiature SGRF103 relays are designed to provide a practical surface-mount solution with improved RF signal repeatability over the frequency range. SGRF103 relays feature a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability. The SGRF103 extend performance advantages over similar RF devices that simply offer formed leads for surface mounting. These relays are engineered for use in RF attenuator, RF switch matrices, ATE and other applications that require dependable high frequency signal fidelity and performance.
