Showa SWCC X-Ray Cable & High Voltage EP Rubber Cable

SKU: XV-150 Category: Tag: Brand:

Description

SHOWA’s X-Ray Cable & DC High Voltage EP Rubber Cable

Superior Flexibility
High Insulation Performance
High Reliability for Products
Provision of Products Designed and Manufactured as per Your Technical Requirement.

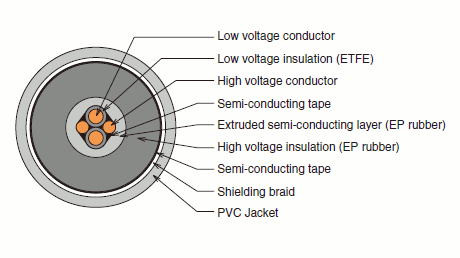

Cross-Sectional Drawing & Construction

X-Ray Cable

< X-Ray Cable >

Example:3-conductor type
3-conductor type
DC 75kV X-Ray Cable

Type of
cable		 Conductor size Dia.of
assembly
Approx.
(mm)		 Dia.of
high voltage
insulation
Approx.
(mm)		 Overall
dia.
Approx.
(mm)		 Conductor
resistance
at 20?
Max.
(Ω/km)		 Test voltage
Low
voltage
(mm2)		 High
voltage
(mm2)		 Low voltage
conductor
-insulation
AC
(kV/min.)		 High voltage
conductor
-shield
DC
(kV/min.)
XV-75 1.5 0.75 4.4 13.3 16.2 19.8 2/1 120/10
XV-100 17.0 20 160/10
XV-150 22 25 240/10

page top

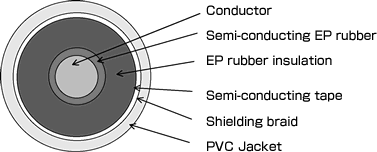

<DC High Voltage EP Rubber Cable(for Industrial Equipment>

< DC High Voltage EP Rubber Cable (for Industrial Equipment >

DC 60kV EP Rubber Cable
DC 60kV EP Rubber Cable

Type of
cable		 Conductor size Dia.of
assembly
Approx.
(mm)		 Dia.of
high voltage
insulation
Approx.
(mm)		 Overall
dia.
Approx.
(mm)		 Conductor
resistance
at 20?
Max.
(Ω/km)		 Test voltage
Low
voltage
(mm2)		 High
voltage
(mm2)		 Low voltage
conductor
-insulation
AC
(kV/min.)		 High voltage
conductor
-shield
DC
(kV/min.)
XV-75 1.5 0.75 4.4 13.3 16.2 19.8 2/1 120/10
XV-100 17.0 20 160/10
XV-150 22 25 240/10

The above examples are just for your reference and SHOWA is pleased to design,manufacturer and supply products as per your technical requirement such as specified voltage and conductor size,etc.
