Description

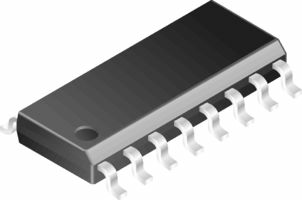

SIG / Philips AM26LS31CD IC Quad Bus Line Transceiver RS-422 16-Pin SOIC Tube, DIFF LINE DRIVER, 16SOIC , Driver; 5 V; 16-Lead SOIC; PCB Mount; 20 (Max.) mA; -20 (Max.) mA; 4; 1375 mW
Part Specification:
- Data Rate : 10Mbps
- Interface Circuit Standard 1 : EIA/TIA-422-B/V.11
- Number of Receivers : Not Required
- Number of Transmitters : 4
- Number of Transceivers : Not Required
- Data Transmission Topology : Multidrop
- Receiver Signal Type : Not Required
- Transmitter Signal Type : Differential
- Package Type : SOIC
- Packaging : Tube
- Single Supply Voltage (Min) : 4.75V
- Single Supply Voltage (Typ) : 5V
- Single Supply Voltage (Max) : 5.25V
- Dual Supply Voltage (Min) : Not Required
- Dual Supply Voltage (Typ) : Not Required
- Dual Supply Voltage (Max) : Not Required
- Supply Current : 80mA
- Operating Temp Range : 0C to 70C
- Operating Temperature Classification : Commercial
- Power Supply Requirement : Single
- Mounting : Surface Mount
- Pin Count : 16
Manufacturer Part Number: AM26LS31CD
Philips
