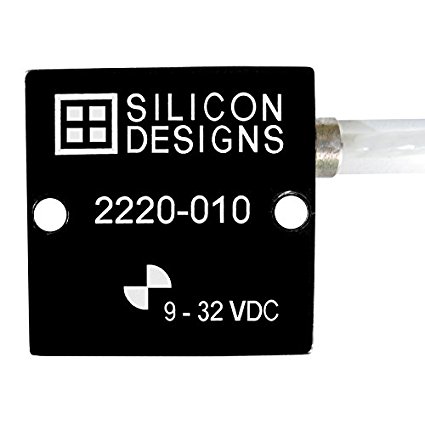

Silicon Designs SDI-2220-050 Hi-Temp 1-Axis Industrial Accelerometer, +/-50 g
The model 2220 accelerometer is a higher performance and wider temperature range version of the model 2210. This rugged module combines an integrated model 1221L accelerometer with high drive, low impedance buffering for measuring acceleration in commercial/industrial environments. It is tailored for zero to medium frequency instrumentation applications. The anodized aluminum case is epoxy sealed and is easily mounted via two #4 (or M3) screws. On-board regulation is provided to minimize the effects of supply voltage variation. It is relatively insensitive to temperature changes and gradients. The cable’s shield is electrically connected to the case while the ground (GND) wire is isolated from the case. An initial calibration sheet (2220-CAL) is included and periodic calibration checking is available.
The Model 2220 accelerometer module produces two analog voltage outputs which vary with acceleration as shown in the graph on the next page. The sensitive axis is perpendicular to the bottom of the package, with positive acceleration defined as a force pushing on the bottom of the package. The signal outputs are fully differential about a common mode voltage of approximately 2.5 volts. The output scale factor is independent from the supply voltage to +32 volts. At zero acceleration the output differential voltage is nominally 0 volts DC; at ±full scale acceleration the output differential voltage is ±4 volts DC respectively.
Product Features
|
Product Description
Model SDI 2220-050: Single Axis Variable Capacitance High Temperature Capacitance Accelerometer Module; Low Noise; ±4V Differential or 4V Single Ended Output; +9 to +32 VDC Operation; -55/+125*C; 1″x1″x0.3″; 10 grams; Integral Cable; Includes Free Initial Calibration Certificate; G Range +/-50g; Sensitivity 80 mV/g.
