Description
The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

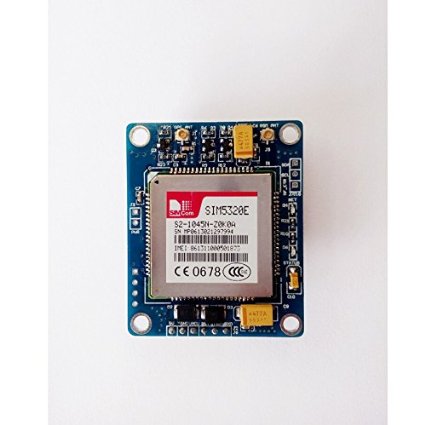

This module is more than 5V1.5A current, two groups of the antenna interface IPX port, a group to extend the line can be connected with glue stick and chuck antenna. Two groups of GPS antenna antenna interface, can realize the GPS positioning function, the module to 3G network module, speed if far beyond the 2G network. TTL adaptive serial port is compatible with 3.3 and 5V single chip computer USB–TTL, debugging can be. Power supply: DC 5V 1A or more than 1A. Communication interface: a group of TTL level compatible with 5V 3.3V MCU; serial port, a group of USB interface, can be directly connected to the computer debugging. GPS antenna interface: a group of IPXmini antenna interface, the default GPS active antenna. GMS antenna interface: a group of IPXmini antenna interface, the default PCB antenna. SIM card interface: a drawer type SIM card interface. USB interface: Mini USB interface. Mike: out of voice interface, interface for a 2.54*4P single row form. Other interface: a group of IIC interface control module, a group can be opened and closed (the default boot interface module). Indicator: a 0603 LED module, used to indicate the working condition, a 0603 LED module, used to indicate the state of the network.
Specifications
Model No SIM5320E
Category 3G Module
Manufacturer Simcom
Form Factor LCC Castellation
Dimensions 30 x 30 x 2.9 mm
Technologies GSM,GPRS(Class 12),EDGE,UMTS,HSDPA
Dload Speed 3.6 Mbps
Upload Speed 384 kbps
Freq bands
GPRS/EDGE 850/900/1800/1900 MHz
WCDMA 2100/900 MHz
Temperature -30 º C to 85 º C
Certifications CE, GCF, ICASA (South Africa)
Interfaces UART, GPIOs, ADC/DAC, USB, SPI, I2C
Voice Support None
GPS Support Yes
General features
SIM5320E:Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
*GPRS multi-slot class 12
*EDGE multi-slot class 12
*WCDMA 3GPP release 5
*Output power
– UMTS 850/1900: 0.25W
– UMTS 900/2100: 0.25W
– GSM850/GSM900: 2W
– DCS1800/PCS1900: 1W
* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Extended Operation temperature: -30? to +85?
* Dimension: 30 * 30* 2.9g
* Weight: 5.6
Specifications for GPS
* A-GPS: MS-Based, MS-Assisted
* Stand-alone GPS
Support embedded Script Language
* LUA Script Language
Specifications for Data transfer
* HSDPA
– Max. 3.6Mbps(DL)
* WCDMA
– Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE Class:
– Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS
– Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD
– GSM data rate 14.4Kbps
– WCDMA data rate 57.6Kbps
– WCDMA 64kbps CSD for Video call
Specifications for SMS
* Point to point MO and MT
* Text and PDU mode
Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Windows CE/Mobile
* USB Driver for Linux 2.6
* Firmware update via USB
* MMS
* TCP/IP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
* FOTA
* eCall Reday
Interfaces
* USB2.0
* UART
* SIM card
* SPI
* I2C
* Keypad
* Constant current sink
* GPIO
* RTC
* ADC
* PCM
Certifications
* PTCRB
SIM5320E * CE
* GCF
* ICACA
Manufacturer Part Number: SIM5320E
Manufacturer: Electronic Components
