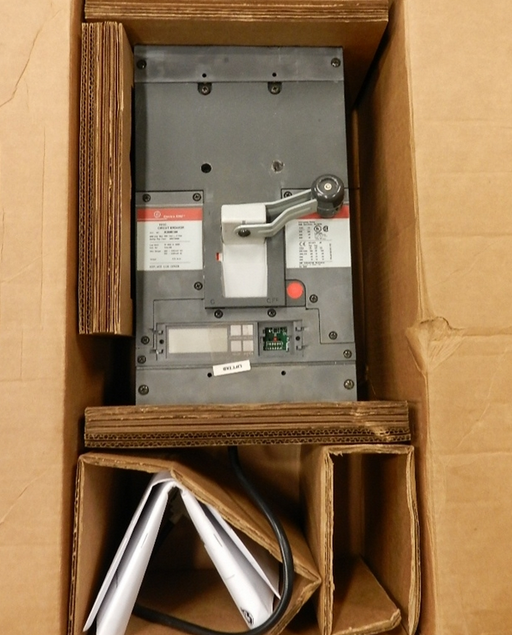

SKPB36BC1200 GE/ABB Circuit Breaker 1200A 600V 3 Poles
SKPB36BC1200 GE/ABB Circuit Breaker 1200A 600V 3 Poles - Image 2

SKPB36BC1200 GE/ABB Circuit Breaker 1200A 600V 3 Poles

Please call 800-717-6475 to check current stock and pricing.

SKPB36BC1200, General Electric, Spectra Series, type SKPB, 3P, 3PH, 1200A, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, Plus trip unit with LIGT – Long-Time, Instantaneous, Ground Fault and Targets trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

SKU: SKPB36BC1200 Category: Brand:

Description

SKLB36BC1200 General Electric Spectra Series molded case circuit breaker. 3P, 3PH, 1200A, 600V, 65kA@480V. High interrupting capacity, Bolt-On. Complete with interchangeable MVT, MicroVersaTrip Plus trip unit with LIGT.

Engineered for heavy-duty commercial and industrial applications, this 1200A unit mount breaker provides advanced LIG (Long-Time, Instantaneous, Ground Fault) protection. It integrates seamlessly into GE Spectra Series switchboards, A-Series panelboards, and motor control centers. Featuring true RMS sensing and interchangeable rating plugs, the SK-frame breaker delivers precise coordination. Note that this legacy component is replaced by the ABB Tmax XT7 series using a specific retrofit kit.

Specifications

Brand ABB / General Electric
Series SKLB
Part Number SKLB36BC1200-R
Amperage 1200A
Amperage Range 600-1200A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers
Trip Technology Electronic Trip
Trip Function Code LIG
Trip Function Long-Time, Instantaneous, Ground Fault
Trip Adjustability Adjustable
Available Options Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment
Accessories MicroVersaTrip Plus Trip Unit
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed
