Description

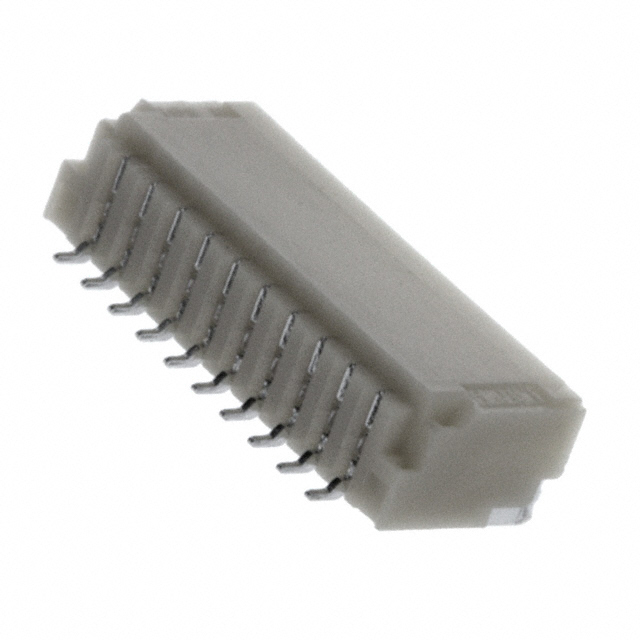

SM10B-PASS-TBT(LF)(SN) JST Connector Header Surface Mount, Right Angle 10 position 0.079″ (2.00mm)
Product Attributes
Categories Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Manufacturer JST Sales America Inc.
Series PA
Packaging Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.079″ (2.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224″ (5.69mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Operating Temperature -25C ~ 85C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Manufacturer Part Number: SM10B-PASS-TBT(LF)SN
Manufacturer: Electronic Components
